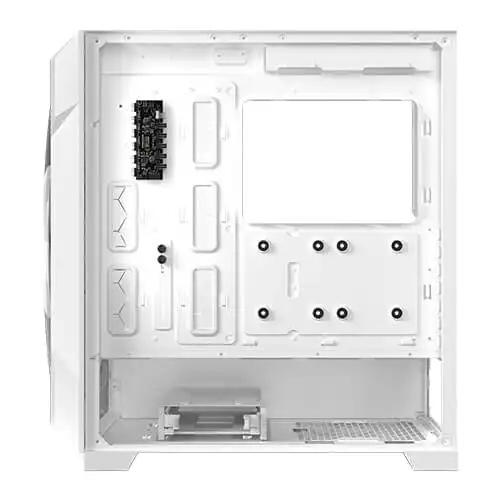

Antec DP505 White Mid-Tower E-ATX Gaming Case
Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | E-ATX, ATX, Micro-ATX, ITX | |
| External Features | ||
| Color(s) | White | |
| Material | Steel, Plastic | |
| Weight | Net Weight: 8.1 kgs Gross Weight: 9.1 kgs |
|
| Dimensions | 481 x 220 x 490mm (DWH) | |
| Front Ports | Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 | |
| Expansion Slots | 7 | |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360mm Top: 120 / 140 / 240 / 280 / 360mm Rear: 120mm |
|
| Fan Support | Front: 120mm x 3 / 140mm x 3 / 185mm x 2 Top: 120mm x 3 / 140mm x 2 Power Supply Shroud: 120mm x 2 Rear: 120mm x 1 |
|
| Pre- Installed Fans | 120mm ARGB fans in front x 3 | |
| Drive Bays | 3.5″ / 2.5″: 2 / 2 2.5″: 2 |
|
| Additional Feature | ||
| Side Panel | 4mm Tempered Glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 170mm | |
| Maximum Graphics Card Length | ≤ 375mm | |
| Maximum PSU Length | ≤ 205mm(with HDD) ≤ 410mm(without HDD) |
|
| Warranty | ||
| Warranty | No Warranty | |
Description
Antec DP505 White Mid-Tower E-ATX Gaming Case
The Antec DP505 White Mid-Tower E-ATX Gaming Case is crafted with both performance and aesthetics in mind. Its spacious interior provides generous room for hardware, allowing users to install powerful graphics cards, multiple storage drives, and advanced cooling solutions. The case can accommodate up to six 120mm fans, and it includes a pre-installed 120mm rear fan for out-of-the-box cooling performance. For water cooling enthusiasts, the DP505 supports up to a 360mm radiator in the front and a 240mm radiator on the top, providing flexibility for custom water-cooling setups.
The design of the case prioritizes airflow with its mesh front panel, which allows for unimpeded airflow into the system, keeping temperatures low even during demanding gaming or workstation tasks. The large tempered glass side panel not only adds to the aesthetics but also lets you proudly display your build and components. The case’s clean lines and minimalist design make it a perfect fit for any gaming or home-office setup.
For user convenience, the Antec DP505 comes with a front I/O panel that includes USB 3.0 and USB 2.0 ports, along with headphone and microphone jacks. Inside, the case features an efficient cable management system, ensuring that cables are neatly organized for better airflow and a more streamlined look. With support for up to two 3.5” hard drives and four 2.5” SSDs, as well as compatibility with various GPU lengths and CPU coolers, this case ensures that users have plenty of room for future upgrades and customization.
Overall, the Antec DP505 White Mid-Tower E-ATX Gaming Case combines form and function, offering an optimal platform for building a high-performance PC while maintaining an elegant and clean aesthetic.
