Asrock B450M Pro4-F AMD Motherboard
Specification
| Basic Information | ||
| Supported CPU | – AMD AM4 Socket – Digi Power design – 9 Power Phase design |
|
| Chipset | AMD Promontory B450 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – DRAM Voltage multi-adjustment |
|
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm – Solid Capacitor design |
|
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – ELNA Audio Caps |
|
| Expansion Slots | ||
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) – 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Ryzen series CPUs (Raven Ridge) – 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) – 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode) AMD Athlon series CPUs – 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) – 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode)– 1 x PCI Express 2.0 x1 Slot – Supports AMD Quad CrossFireX and CrossFireX |
|
| M.2 Socket | – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) – 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory – AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory – AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB. – Three graphics output options: D-Sub, DVI-D and HDMI – Supports Triple Monitor – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) – Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports – Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports |
|
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| Display Port (s) | 1 x DVI-D Port | |
| D-Sub (s) | 1 x D-Sub Port | |
| DVI-D (s) | 1 x DVI-D Port | |
| USB (s) | – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
| LAN Port (s) | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111GR – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports LAN Cable Detection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
|
| Supported Storage | – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) – 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module |
|
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – ELNA Audio Caps |
|
| Internal I/O Ports | – 1 x PS/2 Mouse Port – 1 x PS/2 Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone – 1 x COM Port Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header* – 1 x Addressable LED Header** – 1 x AMD Fan LED Header*** – 1 x CPU Fan Connector (4-pin)**** – 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)***** – 1 x Chassis Fan Connector (3-pin) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x AMD LED Fan USB Header – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x TPM Header | |
| Others | ||
| Special Features | ASRock Super Alloy – Premium 42A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Bundled Software | Software – ASRock A-Tuning – ASRock RGB LED – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Instant Flash – ASRock Easy RAID Installer |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
Description
Asrock B450M Pro4-F AMD Motherboard
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
*Please refer to the product specification page for more detail.

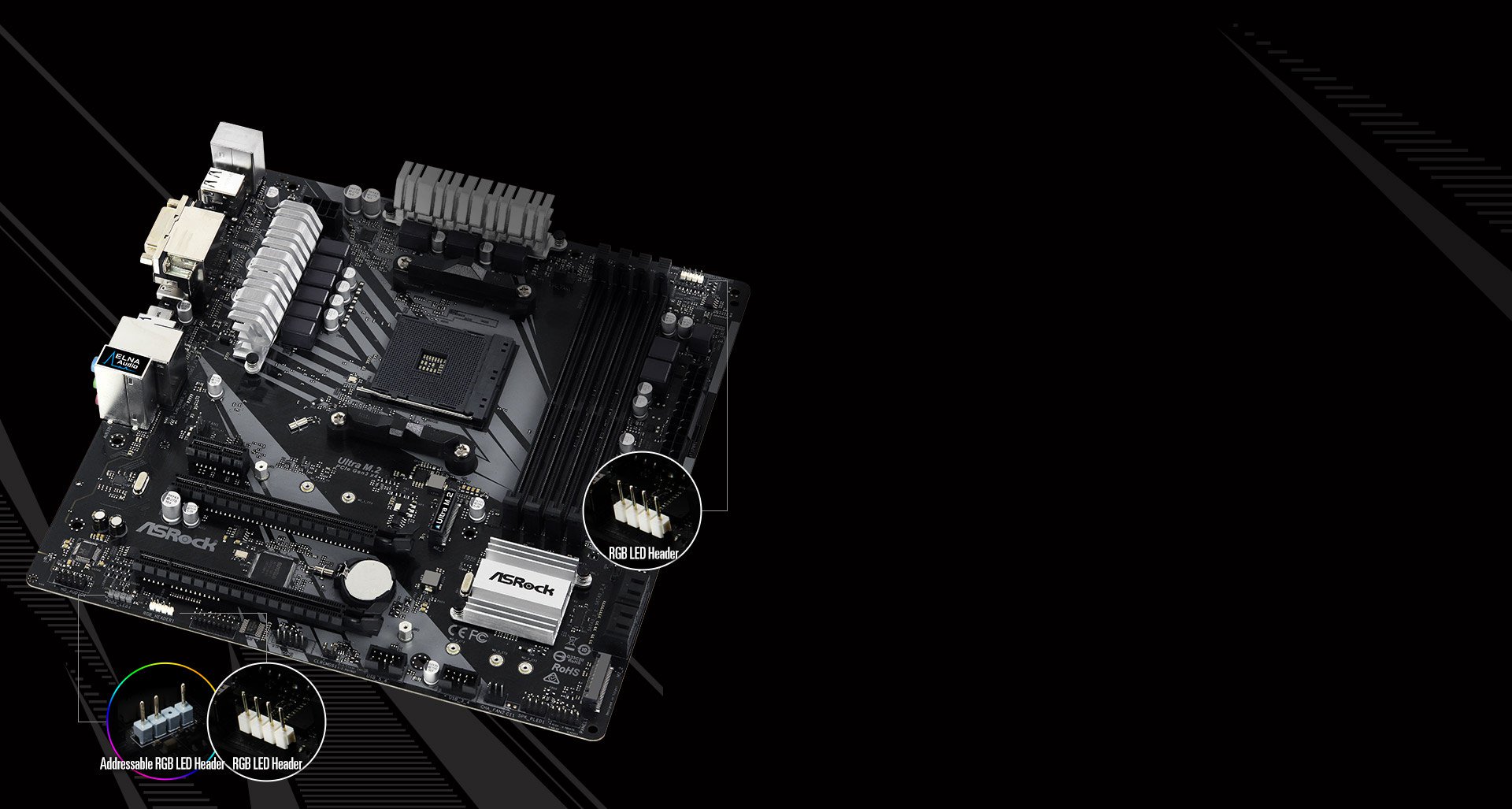

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
USB Type-C
A latest reversible USB Type-C design that fits the connector either way.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
Premium 42A Power Choke
Compared to traditional chokes, ASRock’s premium 42A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.

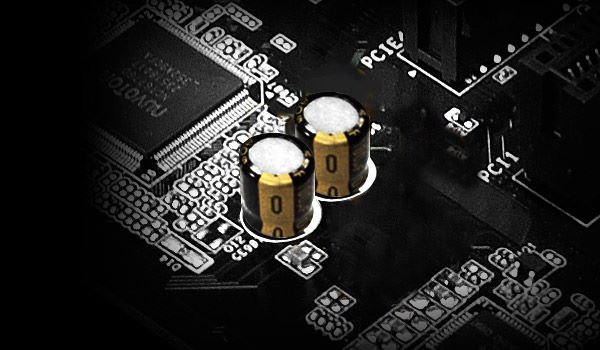

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Triple Monitor
Graphics, graphics and even more graphics! You’ve demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
*Supported with processors with integrated graphics only.
A-Tuning
A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Asrock B450M Pro4-F AMD Motherboard Price in BD
The Best price of Asrock B450M Pro4-F AMD Motherboard is 10700 taka. You can buy the Asrock B450M Pro4-F AMD Motherboard in BD and also you can visit Our showroom a nd Join Our Facebook Page.
| Brand | |
|---|---|
| Color | |
| CPU Sockets | AM4 |
| Form Factor | Micro ATX |
| Ram Type | DDR4 |
| Processor Type | AMD |
| Special Features | CrossFireX |
