ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
Original price was: ৳15,600.৳14,300Current price is: ৳14,300.
Quick Overview
- Model: B660M Phantom Gaming 4
- Supports 12th Gen Intel Core Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supports DDR4 4800MHz (OC)
- Graphics Output Options: HDMI, DisplayPort
Out of stock
ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
Specification
| Basic Information | ||
| Supported CPU | – Supports 12th Gen Intel Core Processors (LGA1700) – Digi Power design – 8 Power Phase design – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel B660 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake-up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, DRAM, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm – Solid Capacitor design |
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection – Nahimic Audio |
|
| Expansion Slots | ||
| PCI | – 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))* – 1 x PCIe Gen3x1 Slot – Supports AMD CrossFire – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | – Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC) – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | – Intel Xe Graphics Architecture (Gen 12) – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | – 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| LAN Port (s) | – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports UEFI PXE |
|
| Supported Storage | – 4 x SATA3 6.0 Gb/s Connectors – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Audio | – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Special Features | ASRock Super Alloy – Premium Power Choke – Sapphire Black PCB – High-Density Glass Fabric PCB ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, and LAN Ports) ASRock Live Update & APP Shop |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description
ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

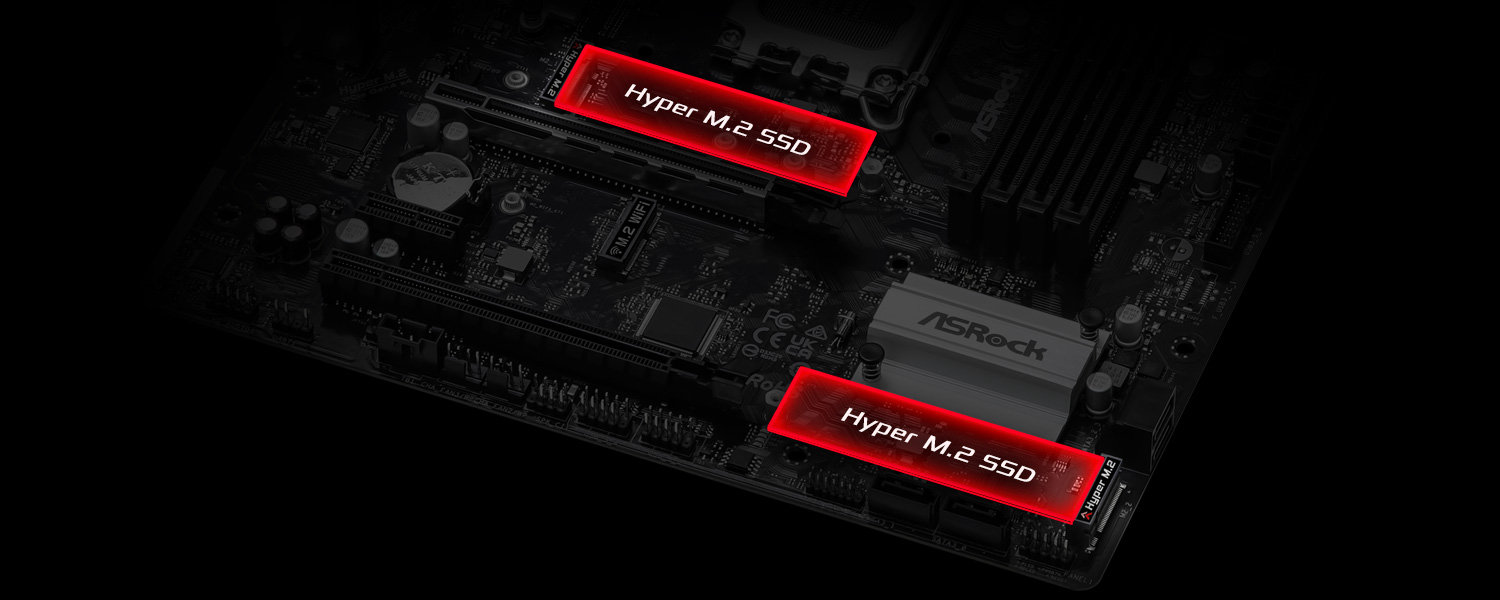

High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

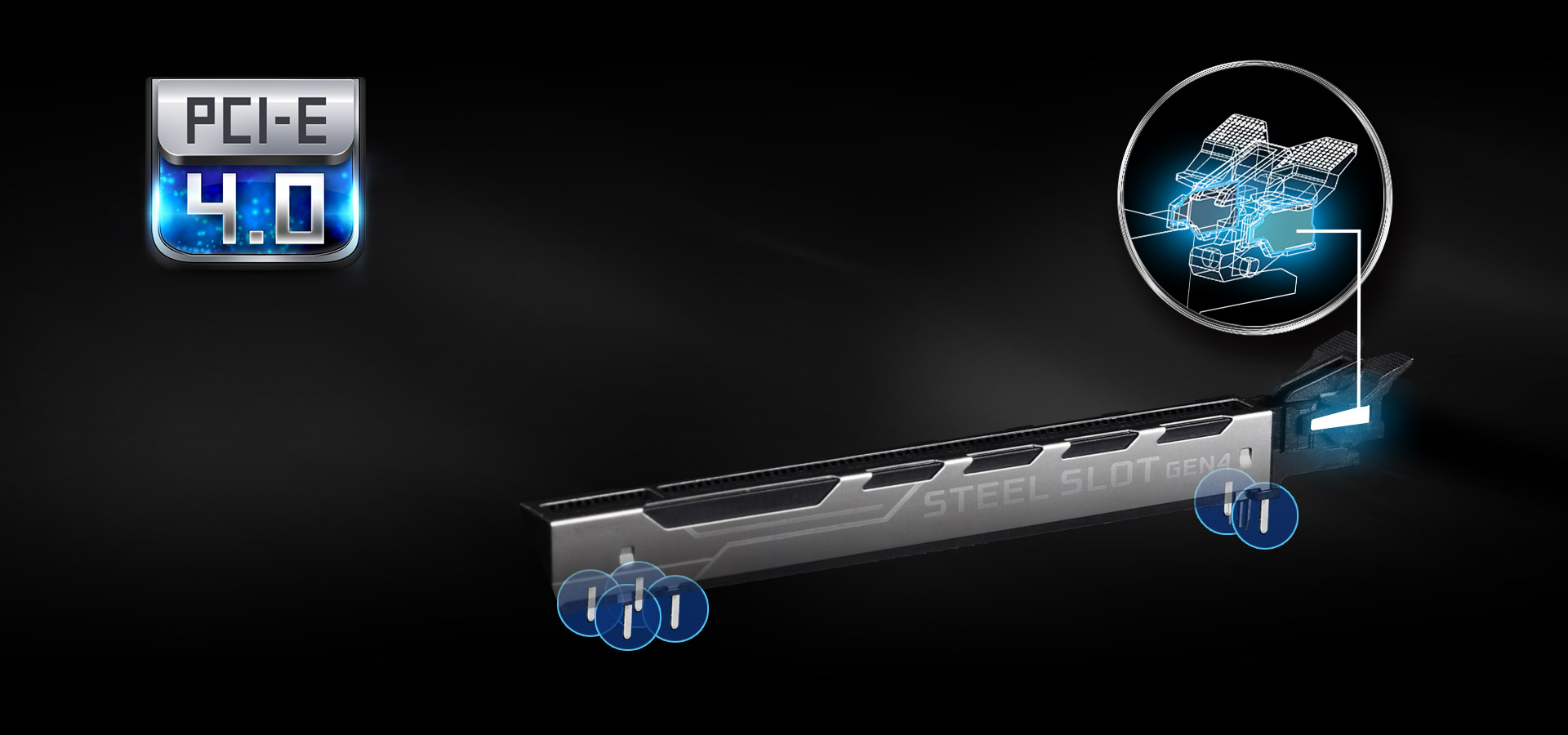

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
![Reinforced Steel Slot [PCIe 4.0 Version]](https://i0.wp.com/www.asrock.com/mb/features/PCIeSteel-B660M%2520Phantom%2520Gaming%25204.jpg?w=1020&ssl=1)
Intel® Gigabit LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard Price in BD
The Best price of ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard is 14100 taka. You can buy the ASRock B660M Phantom Gaming 4 12th Gen Micro ATX Motherboard in BD and also you can visit Our showroom and Join Our Facebook Page.
| Brand | |
|---|---|
| Color | |
| CPU Sockets | LGA1700 |
| Form Factor | Micro ATX |
| Processor Type | Intel |
| Ram Type | DDR4 |
| Special Features | M.2 |
