ASRock Z690 Phantom Gaming 4/D5 12th Gen ATX Motherboard
Original price was: ৳23,500.৳21,300Current price is: ৳21,300.
Quick Overview
- Model: Z690 Phantom Gaming 4/D5
- Supports 12th Gen Intel Core Processors (LGA1700)
- 9 Phase Dr.MOS Power Design
- Supported RAM: DDR5 5800MHz (OC)
- Graphics Output Options: HDMI
ASRock Z690 Phantom Gaming 4/D5 12th Gen ATX Motherboard
Specification
| Basic Information | ||
| Supported CPU | – Supports 12th Gen Intel Core Processors (LGA1700) – 9 Power Phase design – Supports Intel Hybrid Technology – Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel Z690 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake-up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – Solid Capacitor design |
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection – Nahimic Audio |
|
| Expansion Slots | ||
| PCI | – 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3)) – 3 x PCIe Gen3x1 Slots – Supports AMD CrossFire – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) |
|
| Memory | ||
| Type | Dual Channel DDR5 Memory Technology | |
| Slots | 4 x DDR5 DIMM Slots | |
| Supported Memory | – Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 5800+(OC) – Supports Intel Extreme Memory Profile (XMP) 3.0 |
|
| Maximum Memory | Max. capacity of system memory: 128GB | |
| Graphics | ||
| Graphics | – Intel Xe Graphics Architecture (Gen 12) – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| LAN Port (s) | – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports UEFI PXE |
|
| Supported Storage | – 4 x SATA3 6.0 Gb/s Connectors – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes |
|
| Audio | – HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 3 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Special Features | ASRock USB 3.2 Gen2 – ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – Premium Power Choke – 50A Dr.MOS – Sapphire Black PCB – High-Density Glass Fabric PCB ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description
ASRock Z690 Phantom Gaming 4/D5 12th Gen ATX Motherboard
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

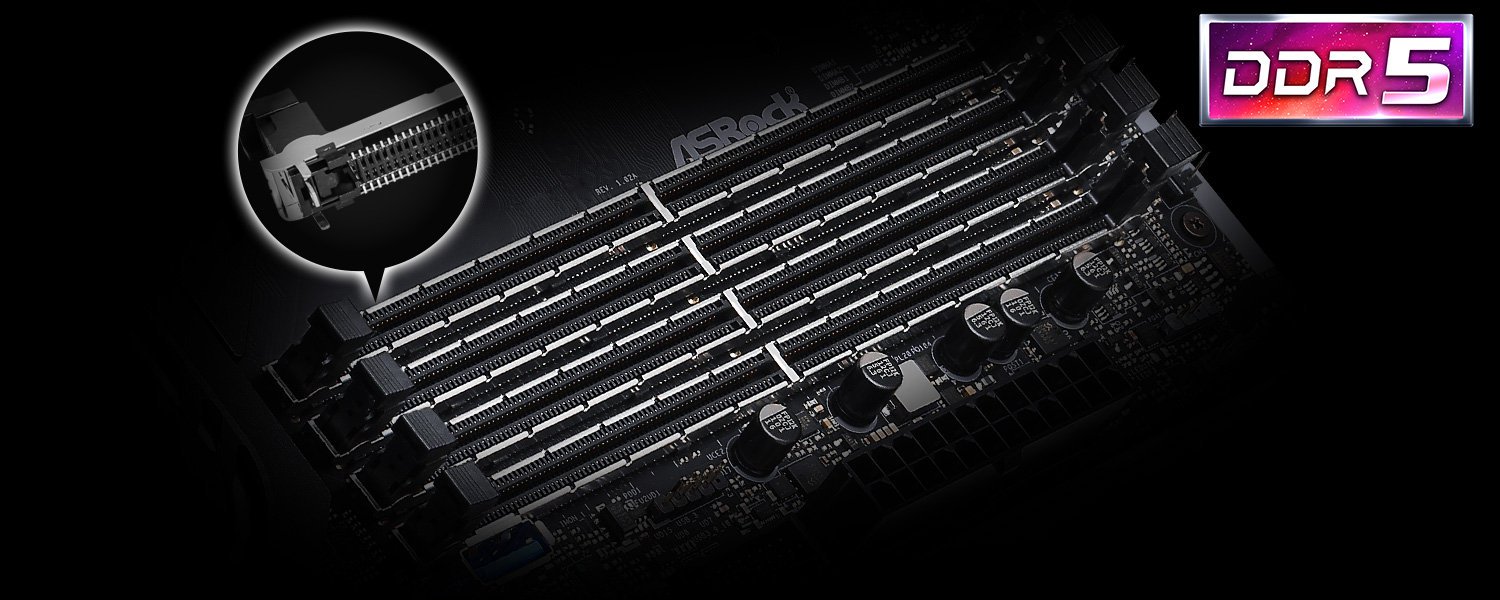

DDR5 Memory with Protection Circuit
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

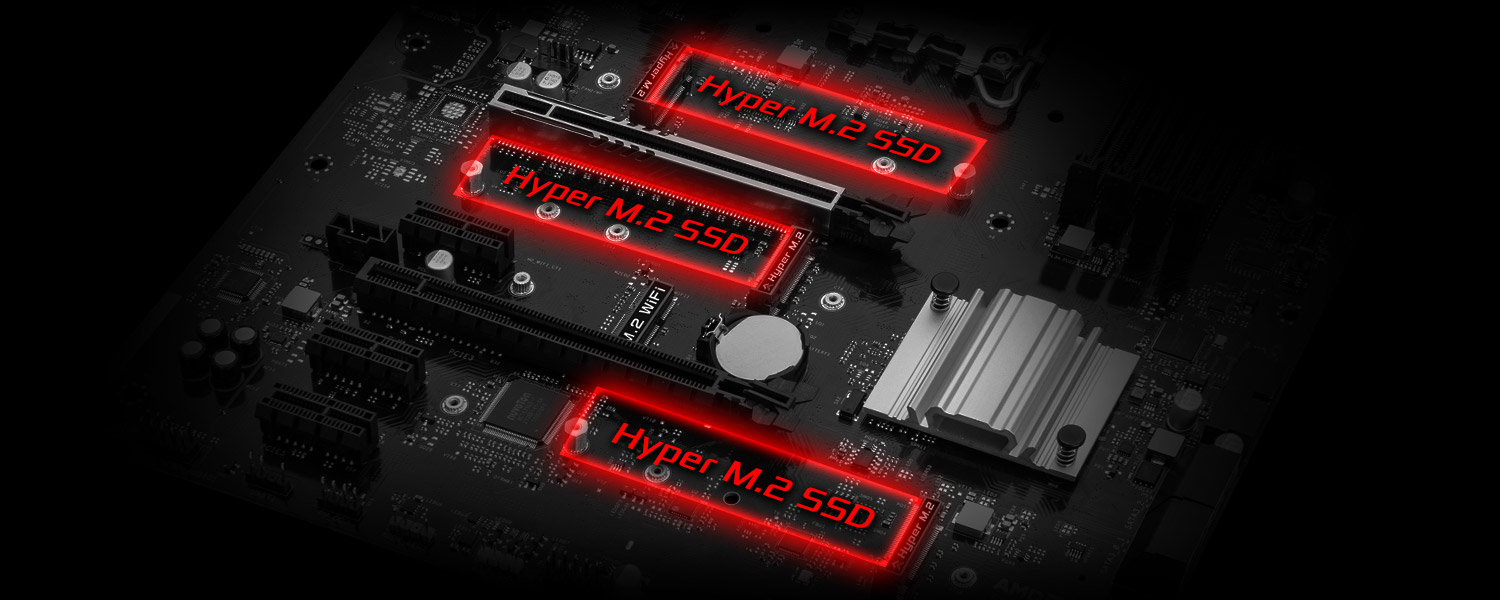

High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the accessories to create their own unique lighting effects
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
ASRock Z690 Phantom Gaming 4/D5 12th Gen ATX Motherboard Price in BD
The Best price of ASRock Z690 Phantom Gaming 4/D5 12th Gen ATX Motherboard is 22,800 taka. You can buy the ASRock Z690 Phantom Gaming 4/D5 12th Gen ATX Motherboard in BD and also you can visit Our showroom and Join Our Facebook Page.
| Brand | |
|---|---|
| Color | |
| CPU Sockets | LGA1700 |
| Form Factor | ATX |
| Processor Type | Intel |
| Ram Type | DDR5 |
| Special Features | M.2 |
