ASRock Z690 Pro RS 12th Gen ATX Motherboard

ASRock Z690 Pro RS 12th Gen ATX Motherboard

Original price was: ৳26,500.Current price is: ৳25,200.

Quick Overview

Model: Z690 Pro RS
Supports 12th Gen Intel Core Processors (LGA1700)
13 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
Graphics Output Options: HDMI, DisplayPort

অর্ডার করার পূর্বে কাস্টমার কেয়ার ( 01958-487491, 01716-532050 ) থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। " THANK YOU "

ASRock Z690 Pro RS 12th Gen ATX Motherboard

Specification

Basic Information
Supported CPU	Supports 12th Gen Intel Core Processors (LGA1700) Digi Power Design 13 Power Phase Design Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology
Chipset	Intel Z690
Memory	Dual Channel DDR4 Memory Technology 4 X DDR4 DIMM Slots Supports DDR4 Non-ECC, Un-Buffered Memory Up To 5000+(OC)* Supports ECC UDIMM Memory Modules (Operate In Non-ECC Mode) Max. Capacity Of System Memory: 128GB Supports Intel® Extreme Memory Profile (XMP) 2.
Graphics	Intel® Xe Graphics Architecture (Gen 12) Dual Graphics Output: Support HDMI And DisplayPort 1.4 Ports By Independent Display Controllers Supports HDMI 2.1 TMDS Compatible With Max. Resolution Up To 4K X 2K (4096×2160) @ 60Hz Supports DisplayPort 1.4 With DSC (Compressed) Max. Resolution Up To 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz Supports HDCP 2.3 With HDMI 2.1 TMDS Compatible And DisplayPort 1.4 Ports
Slots	3 X PCIe X16 Slots (PCIE2/PCIE3/PCIE5: Single At Gen5x16 (PCIE2); Dual At Gen5x16 (PCIE2) / Gen4x4 (PCIE3); Triple At Gen5x16 (PCIE2) / Gen4x4 (PCIE3) / Gen3x4 (PCIE5))* 2 X PCIe Gen3x1 Slots Supports AMD CrossFire 1 X M.2 Socket (Key E), Supports Type 2230 WiFi/BT PCIe WiFi Module And Intel® CNVi (Integrated WiFi/BT)
Supported Storage	8 X SATA3 6.0 Gb/S Connectors* 1 X Hyper M.2 Socket (M2_1, Key M), Supports Type 2260/2280 PCIe Gen4x4 (64 Gb/S) Mode 1 X Ultra M.2 Socket (M2_2, Key M), Supports Type 2260/2280 SATA3 6.0 Gb/S & PCIe Gen3x4 (32 Gb/S) Modes 1 X Hyper M.2 Socket (M2_3, Key M), Supports Type 2260/2280/22110 PCIe Gen4x4 (64 Gb/S) Mode
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/S Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting For Game, Browser, And Streaming Modes User Customized Priority Control Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio
USB Port	2 X USB 2.0 Headers (Support 4 USB 2.0 Ports) (Supports ESD Protection) 2 X USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 Ports) (Supports ESD Protection) 2 X USB 3.2 Gen2 Ports (10 Gb/S) (ReDriver) (Supports ESD Protection) 2 X USB 3.2 Gen1 Ports (Supports ESD Protection) 2 X USB 2.0 Ports (Supports ESD Protection)
Internal I/O Ports	3 X Antenna Mounting Points 1 X PS/2 Mouse/Keyboard Port 1 X HDMI Port 1 X DisplayPort 1.4 2 X USB 3.2 Gen2 Ports (10 Gb/S) (ReDriver) (Supports ESD Protection) 2 X USB 3.2 Gen1 Ports (Supports ESD Protection) 2 X USB 2.0 Ports (Supports ESD Protection) 1 X RJ-45 LAN Port With LED (ACT/LINK LED And SPEED LED) 1 X BIOS Flashback Button HD Audio Jacks: Line In / Front Speaker / Microphone
External I/O Ports	1 X SPI TPM Header 1 X Power LED And Speaker Header 1 X RGB LED Header* 3 X Addressable LED Headers 1 X CPU Fan Connector (4-Pin)* 1 X CPU/Water Pump Fan Connector (4-Pin) (Smart Fan Speed Control)** 4 X Chassis/Water Pump Fan Connectors (4-Pin) (Smart Fan Speed Control)*** 1 X 24 Pin ATX Power Connector (Hi-Density Power Connector) 1 X 8 Pin 12V Power Connector (Hi-Density Power Connector) 1 X 4 Pin 12V Power Connector (Hi-Density Power Connector) 1 X Front Panel Audio Connector 1 X Thunderbolt™ AIC Connector (5-Pin) (Supports ASRock Thunderbolt™ 4 AIC Card) 2 X USB 2.0 Headers (Support 4 USB 2.0 Ports) (Supports ESD Protection) 2 X USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 Ports) (Supports ESD Protection) 1 X Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/S) (Supports ESD Protection)
DIMENSIONS	12.0-In X 9.6-In, 30.5 Cm X 24.4 Cm
Form Factor	ATX Form Factor Solid Capacitor Design 2oz Copper PCB
BIOS	– 128Mb AMI UEFI Legal BIOS With Multilingual GUI Support – ACPI 6.0 Compliant Wake Up Events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-Adjustment
HDMI	1 X HDMI Port
Warranty	3 Years

Description

ASRock Z690 Pro RS 12th Gen ATX Motherboard

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Nahimic Audio

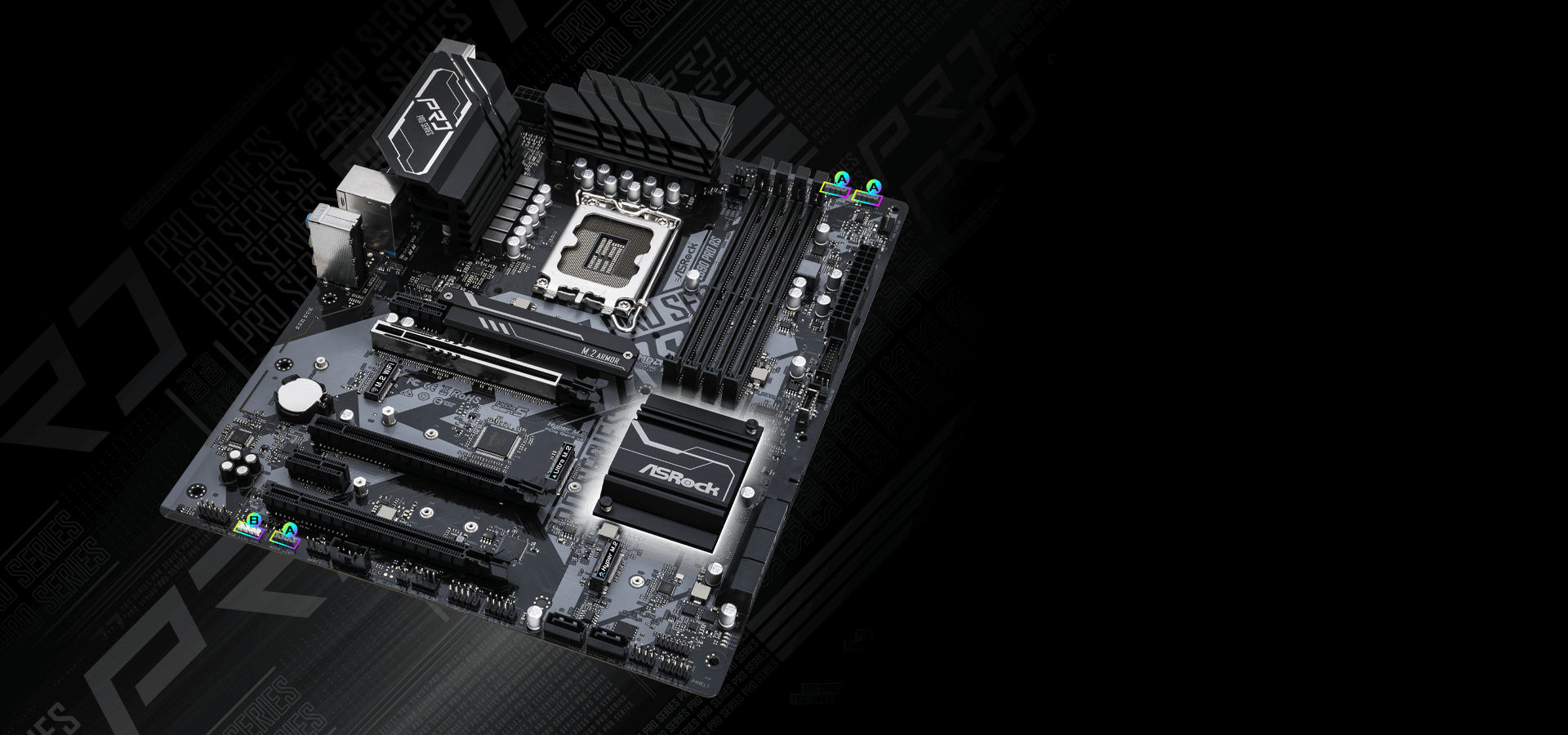

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs, and a length within 2 meters.
*The RGB LED header supports a standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and a length within 2 meters.

Base Frequency Boost (BFB) Technology

BFB Technology allow the use of increasing TDP to enjoy the base frequency boost with the hidden power of processors with users’ non K series CPUs and ASRock’s selected 600 series motherboards

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.

BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than the original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

ASRock Z690 Pro RS 12th Gen ATX Motherboard Price in BD

The Best price of the ASRock Z690 Pro RS 12th Gen ATX Motherboard is 22,400 taka. You can buy the ASRock Z690 Pro RS 12th Gen ATX Motherboard in BD and also you can visit Our showroom and Join Our Facebook Page.

Brand	ASRock
Color	Black
CPU Sockets	LGA1700
Form Factor	ATX
Processor Type	Intel
Ram Type	DDR4
Special Features	M.2
