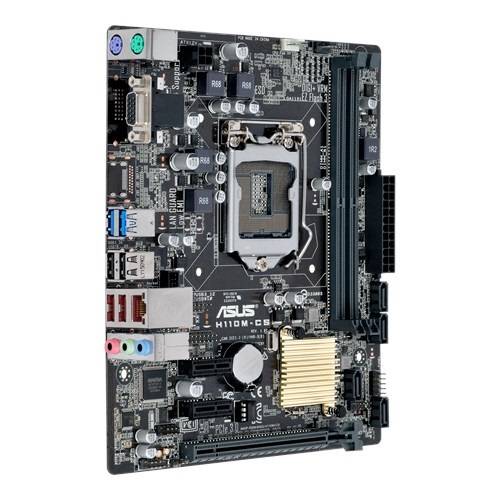

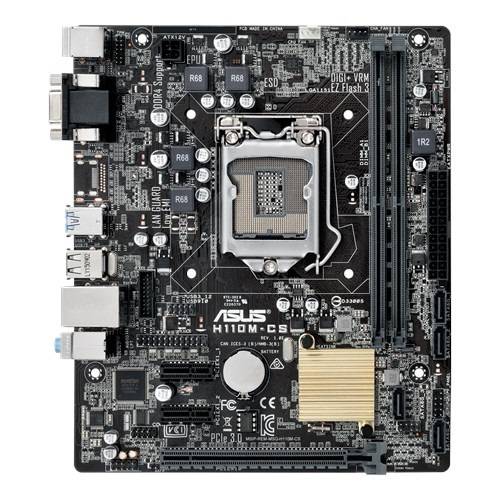

Asus H110M-CS 7th/6th Gen micro-ATX Motherboard
Specification
| Basic Information | |
| Supported CPU | Intel® Socket 1151 For 7th/6th Generation Core™ I7/Core™ I5/Core™ I3/Pentium®/Celeron® Processors Supports Intel® 14 Nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel H110 |
| Memory | 1024 MB |
| Graphics | VGA Output Support : RGB Port Supports RGB With Max. Resolution 1920 X 1200 @ 60 Hz |
| Slots | 2 X DIMM |
| Supported Storage | Intel® H110 Chipset : 4 X SATA 6Gb/S Port(S), Gray, Intel® Rapid Storage Technology Supports*2 |
| LAN | Realtek RTL8111H |
| Audio | Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *3 Supports : Jack-Detection, Front Panel Jack-Retasking Audio Shielding: Ensures Precision Analog/Digital Separation And Greatly Reduced Multi-Lateral Interference Dedicated Audio PCB Layers: Separate Layers For Left And Right Channels To Guard The Quality Of The Sensitive Audio Signals Premium Japanese-Made Audio Capacitors: Provide Warm, Natural And Immersive Sound With Exceptional Clarity And Fidelity |
| USB Port | Intel® H110 Chipset : 4 X USB 3.1 Gen 1 Port(S) (2 At Back Panel, Blue, 2 At Mid-Board) Intel® H110 Chipset : 6 X USB 2.0/1.1 Port(S) (4 At Back Panel, Black, 2 At Mid-Board) |
| Internal I/O Ports | 1 X USB 3.1 Gen 1(Up To 5Gbps) Connector(S) Support(S) Additional 2 USB 3.1 Gen 1 Port(S) (19-Pin) 1 X USB 2.0 Connector(S) Support(S) Additional 2 USB 2.0 Port(S) 1 X LPT Header 1 X COM Port(S) Connector(S) 4 X SATA 6Gb/S Connector(S) 1 X CPU Fan Connector(S) (1 X 4 -Pin) 1 X Chassis Fan Connector(S) (1 X 4 -Pin) 1 X 24-Pin EATX Power Connector(S) 1 X 4-Pin ATX 12V Power Connector(S) 1 X Front Panel Audio Connector(S) (AAFP) 1 X Internal Speaker Connector(S) 1 X System Panel(S) 1 X 14-1 Pin TPM Connector 1 X Chassis Intrusion Header |
| DIMENSIONS | 24.8 X 22.6 X 5.2 Cm |
| Form Factor | UATX Form Factor 8.3 Inch X 7.1 Inch ( 21.08 Cm X 18.03 Cm ) |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-Language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen Function, And ASUS DRAM SPD (Serial Presence Detect) Memory Information |
| Others | User’s Manual I/O Shield 2 X SATA 6Gb/S Cable(S) 1 X Supporting DVD |
| Warranty | 03 Years |
Description
Asus H110M-CS 7th/6th Gen Micro-ATX Motherboard
Industry-Leading 5X Protection II Employs The Finest Components, Excellent Circuit Design, And Exacting Standards To Guarantee the Quality And Long-Term Durability Of Your Motherboard With All-Round Protection. For You, That Means Exceptional Protection And Stability For Your Build — The Result Of Decades Of Engineering Experience From The World’s Leading Motherboard Brand.
Pumped-Up Throughput. 2.5X Higher Surge Tolerance.
ASUS LANGuard Is Hardware-Level Networking Protection That Employs Signal-Coupling Technology And Premium Anti-EMI Surface-Mounted Capacitors Ensuring A More Reliable Connection And Better Throughput, Plus Electrostatically-Guarded And Surge-Protected Components For Greater Tolerance To Static Electricity And Improved Protection Against Surges.
World-Class Circuit-Protecting Power Design
An Exclusive Circuit Design With Built-In Voltage Regulators To Protect Your Chipset, Connectivity Ports, And Audio Codecs From Damage Caused By Unexpected High-Level Voltages From Unstable Or Inferior Power Supplies.
ESD Guards
Electrostatic Discharge (ESD) Can Happen Suddenly, And Its Damaging Effects Are Easily Underestimated. ASUS ESD Guards Are Tested To Very High Standards, Capable Of Up To +/- 10kV For Air Discharge And +/-6kV For Contact Discharge. We Employ An Active Protective Circuit Design To Guard Your System Against Electrostatic Interference And Damage, Providing Greater Component Longevity.
Asus H110M-CS 7th/6th Gen micro-ATX Motherboard Price in BD
The Best price of an Asus H110M-CS 7th/6th Gen micro-ATX Motherboard is 6,500 taka. You can buy the Asus H110M-CS 7th/6th Gen micro-ATX Motherboard in BD and also you can visit Our showroom and Join Our Facebook Page.
