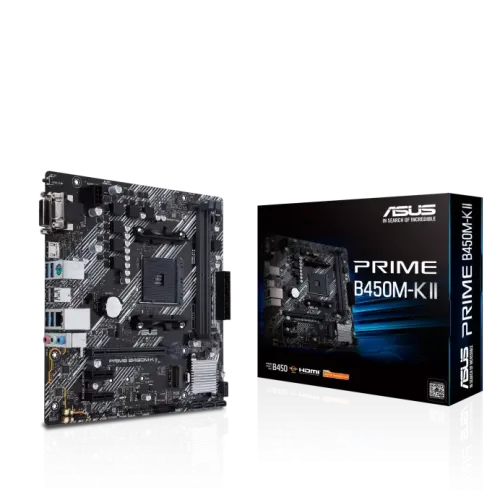

Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard
Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard
Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard
Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard
Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard
Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard
Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard
Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard

Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard

Original price was: ৳10,300.Current price is: ৳9,300.

Quick Overview

  • Model: PRIME B450M-K II
  • CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series
  • Supported RAM: 2 x DDR4, Max. 64GB
  • Graphics Output: 1x D-Sub, 1x DVI-D, 1x HDMI 2.0b
  • Features: 5X Protection III
অর্ডার করার পূর্বে কাস্টমার কেয়ার ( 01958-487491, 01716-532050 ) থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। " THANK YOU "

Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard

Specification

Basic Information
Supported CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset AMD B450
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Expansion Slots
PCI 3rd/2nd/1st Gen AMD Ryzen Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1
M.2 Socket Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode)
Athlon with Radeon Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Supported Memory 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ 3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.) / 2666/2400/2133 MHz Un-buffered Memory
Maximum Memory 64GB
Graphics
Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
1 x D-Sub
1 x DVI-D
1 x HDMI 2.0b
Connector & Ports
HDMI 1 x HDMI 2.0b
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
USB (s) Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
LAN Port (s) Realtek RTL8111H
ASUS LANGuard
Supported Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode)
Athlon with Radeon Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Audio Realtek ALC887/897 7.1-Channel High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
Choose the chassis with an HD audio module in the front panel to support 8-channel audio output.
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
TPM (Trusted Platform Module ) 1 x SPI TPM header
Warranty Information
Manufacturing Warranty 03 years

Description

Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard

The Asus PRIME B450M-K II DDR4 AMD AM4 Micro ATX Motherboard is a versatile and reliable motherboard designed to support AMD Ryzen processors with an AM4 socket. This Micro ATX motherboard offers solid performance and a wide range of features tailored for gaming, productivity, and system building. It supports dual-channel DDR4 memory configurations with speeds of up to 4400 MHz (OC) and a maximum capacity of 128GB, allowing efficient multitasking and high-performance gaming experiences.

The Asus PRIME B450M-K II features PCI Express 3.0 technology and supports discrete graphics cards to boost gaming and graphical performance. It also includes M.2 and SATA storage support for fast boot speeds and a variety of storage options. The inclusion of USB ports and an intuitive network interface ensures seamless peripheral connectivity and smooth online performance. The motherboard’s efficient thermal design uses strategic heat management and quality components to maintain stability and durability even under heavy system loads.

Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard Price in BD

The Best price of a Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard is 9,300 TK. you can visit Our showroom ( Suvastu Arcade ICT Bhaban, Shop: 04,05( Ground Floor), 46-48 New Elephant Road, Dhaka-1205 ) and Join Our Facebook Page.
