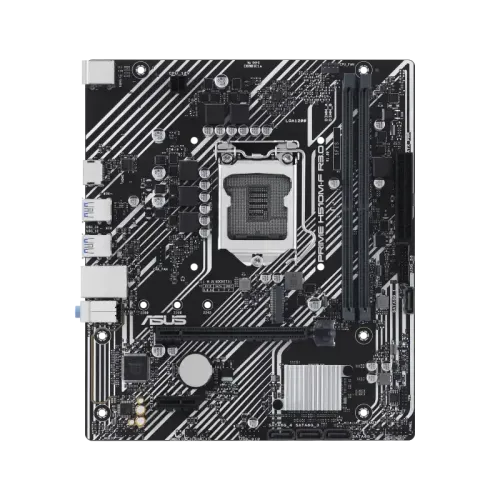

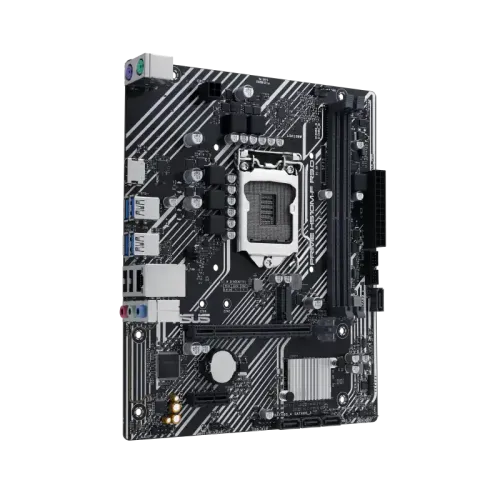

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
Original price was: ৳11,000.৳10,000Current price is: ৳10,000.
Quick Overview
- Model: PRIME H510M-F R3.0
- Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
- Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
- Graphics Output: 1x HDMI port
- Features: 1 x Realtek 1Gb Ethernet
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
Specification
| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H470 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm ) |
|
| Expansion Slots | ||
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot – Intel 11th Gen processors support PCIe 4.0 x16 – Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Dedicated audio PCB layers |
|

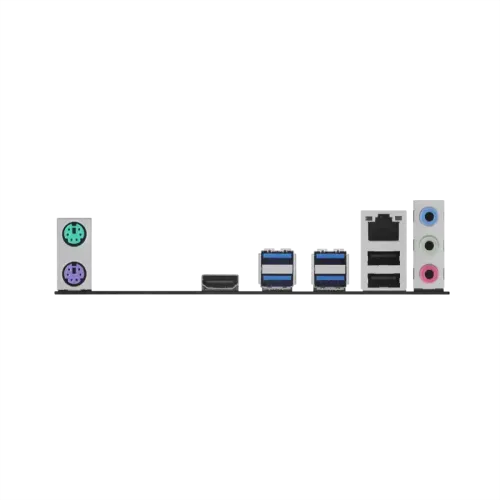

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel headerBack Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – Aluminum heatsink design |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM – EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |
Description
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
The ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard is a reliable and versatile option built to support Intel’s 10th and 11th Gen processors, offering solid performance for everyday computing and multitasking. Designed with the Intel H510 chipset, this micro-ATX motherboard delivers stability and compatibility for efficient operation in a compact form factor. It supports dual-channel DDR4 memory with speeds of up to 2933 MHz and a maximum capacity of 64GB, allowing users to handle multiple applications simultaneously with ease.
The ASUS PRIME H510M-F R3.0 features an M.2 slot for fast NVMe storage support, ensuring quick boot-ups and application load times. Additionally, it offers multiple SATA ports for additional storage options and PCI Express slots for graphics card or expansion card installation. The board is equipped with USB ports, LAN connectivity, and other peripheral options to support a wide variety of devices and network needs. Designed with ASUS’s signature durability and quality, the motherboard incorporates a user-friendly BIOS interface and optimized thermal management to maintain stable and reliable performance under load.
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard Price in BD
The Best price of a ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard is 10,000 TK. you can visit Our showroom( Suvastu Arcade ICT Bhaban, Shop: 04,05( Ground Floor), 46-48 New Elephant Road, Dhaka-1205 ) and Join Our Facebook Page.
