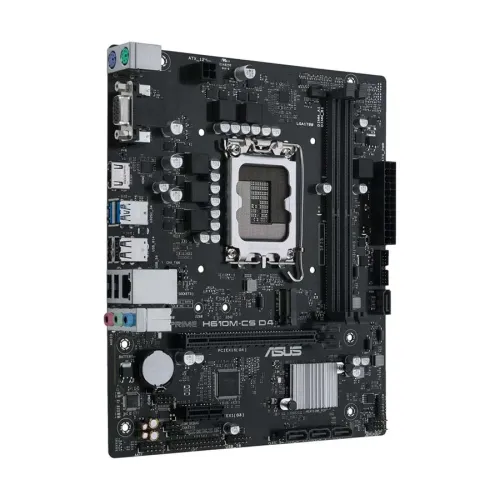

Asus PRIME H610M-CS D4 mATX Motherboard
Original price was: ৳12,300.৳11,200Current price is: ৳11,200.
Quick Overview
- Model: PRIME H610M-CS D4
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 64GB, DDR4
- Graphics Output: 1 x VGA, 1 x HDMI
- Features: 1 x Realtek 1Gb Ethernet
Asus PRIME H610M-CS D4 mATX Motherboard
Specification
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | 1 x M.2 slot | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | 1 x VGA port 1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMITM 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| VGA (s) | 1 x VGA port | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 3 x Audio jacks | |

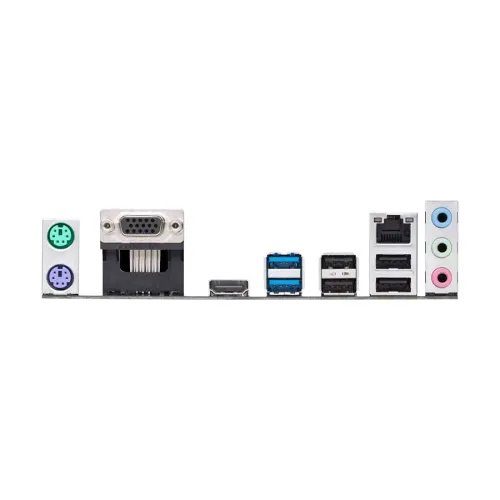

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel headerBack Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core ASUS Thermal Solution – Aluminum heatsink design USBGuard |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |
Description
Asus PRIME H610M-CS D4 mATX Motherboard
The Asus PRIME H610M-CS D4 mATX Motherboard combines functionality, performance, and expandability, making it an ideal choice for users looking to build a reliable system for daily computing, productivity, or light gaming. Designed to support Intel’s 12th and 13th Gen processors, it is built on the Intel H610 chipset, providing excellent compatibility and stability for modern Intel platforms. This microATX motherboard offers an efficient layout that allows it to fit into smaller cases while retaining a variety of features to support multitasking, storage expansion, and system upgrades.
With dual-channel DDR4 memory support, the Asus PRIME H610M-CS D4 can accommodate memory speeds and capacities that deliver fast, responsive performance while maintaining stability under heavy loads. It supports up to 64GB of RAM depending on the configuration, giving users flexibility for multitasking and demanding applications. Additionally, it features PCI Express 4.0 technology, providing faster data transfer rates for graphics cards and other PCIe expansion devices.
The motherboard has multiple connectivity options, including several USB ports, SATA ports for traditional hard drives and SSDs, and M.2 slots for NVMe storage, offering faster boot and load times for supported drives. This combination ensures optimal storage flexibility and responsiveness for both everyday use and gaming. Equipped with advanced thermal design, the Asus PRIME H610M-CS D4 maintains stable and efficient operation by keeping critical components cool under load, preventing throttling and performance drops.
Asus PRIME H610M-CS D4 mATX Motherboard Price in BD
The Best price of a Asus PRIME H610M-CS D4 mATX Motherboard is 11,200 TK. you can visit Our showroom( Suvastu Arcade ICT Bhaban, Shop: 04,05( Ground Floor), 46-48 New Elephant Road, Dhaka-1205 ) and Join Our Facebook Page.
