Specification
Basic Information | |
Supported CPU | Supports CPU Up To 64 Cores Build-In AMD Socket STRX4 For 3rd Gen AMD Ryzen Threadripper Series Desktop Processors |
Chipset | AMD TRX40 |
Memory | 8 X DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.) /3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC And Non-ECC, Un-Buffered Memory Quad Channel Memory Architecture |
Multi-GPU Support | Supports NVIDIA® 2-Way SLI® Technology Supports AMD 2-Way CrossFireX Technology |
Slots | 3 X PCIe 4.0 X16 (X16/X16/X16) 1 X PCIe 4.0 X4 3rd Gen AMD Ryzen Threadripper Series Desktop Processors |
Supported Storage | 2 X M.2 Socket 3, With M Key, Type 2242/2260/2280/22110 Storage Devices Support(PCIe 4.0 X4 Mode) 1 X M.2 Socket 3, With Vertical M Key, Type 2242/2260/2280/22110 Storage Devices Support(SATA & PCIe 4.0 X4 Mode) 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors: AMD TRX40 Chipset: 8 X SATA 6Gb/S Port(S), Support Raid 0, 1, 10 |
LAN | Realtek® RTL8125-CG 2.5G LAN Intel® I211-AT, 1 X Gigabit LAN Controller(S) Anti-Surge LANGuard ROG GameFirst V Technology |
Audio | High Quality120dBSNR Stereo Playback Output108dBSNR Recording Input – Supports: Jack-Detection, Multi-Streaming, Front Panel MIC Jack-Retasking ROG SupremeFX8-Channel High Definition Audio CODEC S1220 – Dual OP Amplifiers – Supports Up To 32-Bit/192kHz Playback Audio Feature: – SupremeFX Shielding™ Technology – Sonic Studio III + Sonic Studio Virtual Mixer – DTS® Sound Unbound – Optical S/PDIF Out Port(S) At Back Panel – Sonic Radar III |
USB Port | 4 X USB 3.2 Gen 2 Port(S) (4 At Back Panel, Red, 3 X Type-A+1 X Type-C) 3rd Gen AMD Ryzen™ Threadripper™ Processors : 4 X USB 3.2 Gen 2 Port(S) (4 At Back Panel, Red) AMD TRX40 Chipset : ASMedia® USB 3.2 Gen 1 Controller : 8 X USB 2.0 Port(S) 1 X USB 3.2 Gen 2 Front Panel Connector Port(S) 4 X USB 3.2 Gen 1 Port(S) (4 At Mid-Board) |
Internal I/O Ports | 2 X M.2 Socket 1 With M Key, Type 2242/2260/2280/22110 Storage Devices Support(PCIe 4.0 X4 Mode) 1 X M.2 Socket 2 With Vertical M Key, Type 2242/2260/2280/22110 Storage Devices Support(SATA & PCIe 4.0 X4 Mode) 1 X Chipset Fan Header 1 X VRM_HS_FAN Header 2 X USB 3.2 Gen 1(Up To 5Gbps) Connector(S) Support(S) Additional 4 USB 3.2 Gen 1 Port(S) 1 X USB 3.2 Gen 2 Front Panel Connector 2 X Aura RGB Strip Header 2 X Addressable Gen 2 Header(S) 2 X USB 2.0 Connector(S) Support(S) Additional 4 USB 2.0 Port(S) 1 X TPM Header 8 X SATA 6Gb/S Connector(S) 1 X CPU Fan Connector(S) 1 X CPU OPT Fan Connector(S) 3 X Chassis Fan Connector(S) 1 X AIO_PUMP Connector 1 X W_PUMP+ Connector 1 X 24-Pin EATX Power Connector(S) 2 X 8-Pin ATX 12V Power Connector(S) 1 X Front Panel Audio Connector(S) (AAFP) 1 X Thermal Sensor Connector(S) 1 X Power-On Button(S) 1 X Clear CMOS Jumper(S) 1 X Node Connector(S) 1 X System Panel Connector 1 X Speaker Connector |
External I/O Ports | 8 X USB 3.2 Gen 2 (7 X Type-A+1 X Type-C) 1 X USB BIOS FlashBack™ Button(S) 1 X LAN (RJ45) Port(S) 4 X USB 2.0 1 X Optical S/PDIF Out 5 X Audio Jack(S) 1 X Anti-Surge 2.5G LAN (RJ45) Port |
WiFi | Wi-Fi 802.11 Ax, Bluetooth® 5.0 Supports 2×2 MU-MIMO Intel® Wi-Fi 6 AX200 Supports Dual Band Frequency 2.4/5 GHz Supports Channel Bandwidth: HT20/HT40/HT80/HT160. Up To 1.73Gbps Transfer Speed |
DIMENSIONS | 12 Inch X 9.6 Inch ( 30.5 Cm X 24.4 Cm ) |
Form Factor | ATX Form Factor |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
Others | – USB BIOS FlashBack™ – BIOS FlashBack™ Button LiveDash OLED 1.3” – Whole System Optimization With A Single Click! 5-Way Optimization Tuning Key Perfectly Consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, And Turbo App Together, Providing Better CPU Performance, Efficient Power Saving, Precise Digital Power Control, Whole System Cooling, And Even Tailor Your Own App Usage. 5-Way Optimization By Dual Intelligent Processors 5 Gamer´S Guardian: – DRAM Overcurrent Protection – Highly Durable Components – Digi+ VRM – SafeSlot – ESD Guards On LAN, Audio, And USB Ports AURA: – Aura Lighting Control – Addressable Gen 2 Header ASUS Exclusive Features: – AI Suite 3 – Ai Charger – Pre-Mounted I/O Shield – ASUS NODE: Hardware Control Interface ASUS EZ DIY: – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 ASUS Q-Design: – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-Connector |
Warranty | 03 Years Warranty |
Description

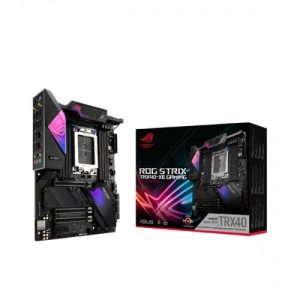

Asus ROG STRIX TRX40-XE GAMING WiFi 6 AMD Motherboard
Take your gaming to the next level with the ASUS ROG Strix TRX40-XE Gaming TRX4 ATX Motherboard. Powered by the AMD TRX40 chipset, this ATX motherboard supports third-generation AMD Ryzen Threadripper processors with the TRX4 socket for high-end video games and content creation. The chipset takes full advantage of the large PCIe 4.0 data bandwidth to handle demanding tasks such as 4K live streaming, video editing, and gaming at high settings. Up to 256GB of quad-channel ECC DDR4 RAM, reaching 4666 MHz when overclocked, can be installed across eight memory slots to improve the system’s multitasking capabilities and speed. The motherboard also features advanced cooling and supports up to three M.2 SSDs and eight SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Its three PCIe 4.0 x16 slots can accommodate 2-Way NVIDIA SLI or AMD CrossFireX configurations to maximize your system’s frame rates at high resolutions while an additional PCIe 4.0 x4 slot is available for compatible devices.
Seven USB 3.2 Gen 2 Type-A ports and one Type-C port is available to transfer data from compatible devices at up to 10 Gb/s. Connect to compatible high-speed networks through the Gigabit Ethernet and 2.5 Gigabit Ethernet ports, or use the built-in 802.11ax Wi-Fi to wirelessly transfer data at up to 1.73 Gb/s. The ROG Strix TRX40-XE delivers deep and immersive 8-channel audio through the SupremeFX S1220 codec, and you can further customize your computing experience by connecting light strips to the addressable Gen 2 Aura Sync RGB lighting headers for dazzling effects. Windows 10 64-bit is required to take advantage of all the motherboard’s features.
Supporting third-generation AMD Ryzen Threadripper processors, the TRX40 chipset is designed for visual effects artists, data scientists, and other professionals who require high-end computing power. The chipset takes advantage of PCIe 4.0 bandwidth for multi-GPU configurations, NVMe storage arrays, and more. Additionally, the platform supports quad-channel DDR4 ECC RAM with unlocked overclocking for even greater speed and power. Asus ROG STRIX TRX40-XE GAMING WiFi 6 AMD Motherboard has 03 years warranty.
Asus ROG STRIX TRX40-XE GAMING WiFi 6 AMD Motherboard Price in BD
The Best price for Asus ROG STRIX TRX40-XE GAMING WiFi 6 AMD Motherboard is 55,300 taka only. You can buy Asus ROG STRIX TRX40-XE GAMING WiFi 6 AMD Motherboard and also you can visit Our showroom and Join Our Facebook Page.
