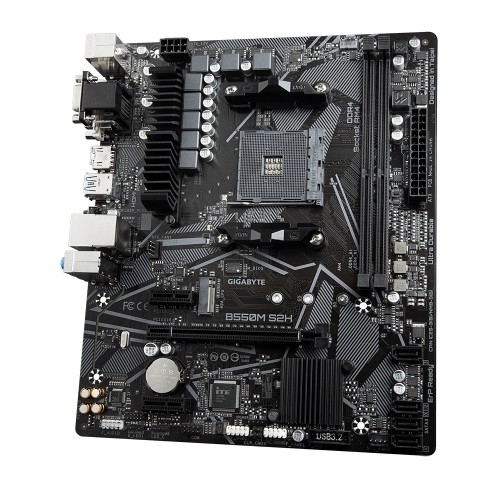

Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
Original price was: ৳13,500.৳12,500Current price is: ৳12,500.
Quick Overview
- Brand: Gigabyte
- Model: B550M S2H
- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Dual Ultra-Fast NVMe
- RGB FUSION 2.0 Supports
- High-Quality Audio Capacitors
Out of stock
Specification
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
|
| M.2 Socket | 1 x M.2 connector, integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 2 x DDR4 DIMM | |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64 GB | |
| Graphics | ||
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz Support for up to 3 displays at the same time |
|
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||

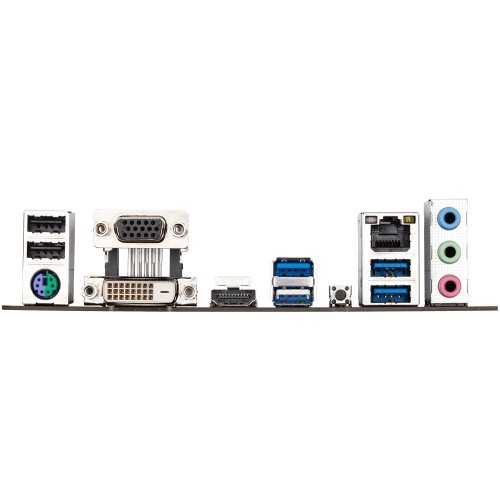

| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| DVI-D (s) | 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz | |
| USB (s) | Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
|
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Support for Windows 10 64-bit | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
Description
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
The Gigabyte B550M S2H AM4 Micro-ATX Motherboard Is Designed Around The AMD B550 Chipset, Supporting 3rd Gen AMD Ryzen Processors With An AM4 Socket. It Has Two Memory Slots, Supporting Up To 64GB Of Dual-Channel RAM, Which Can Run At Up To 5100 MHz (O.C.). This Motherboard Features A Micro-ATX Form Factor, Which Fits In Smaller Tower Cases. Other Integrated Features Include Realtek Gigabit Ethernet, Realtek 7.1-Channel Audio Support, Smart Fan 5, RGB Fusion 2.0 Support, And Gigabyte Q-Flash Plus.
This Motherboard Pairs Third-Generation AMD Ryzen Processors With High PCIe 4.0 Memory Bandwidth Through
With NVMe PCIe 4.0/3.0 X4 And PCIe 3.0 X4 M.2 Connectors, This Motherboard Allows You To Experience NVMe Mode Or SATA Mode Connectivity, Delivering Up To 64 Gb/S Data Transfer Speed.Realtek LAN Provides High Performance For Gamers And Features Automatic Bandwidth Allocation To Ensure The Highest Network Priority. Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard has 03 years warranty.
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard Price in BD
The Best price for Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard is 12,500 taka only. You can buy Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard and also you can visit Our showroom and Join Our Facebook Page.
| Brand | |
|---|---|
| Color | |
| CPU Sockets | AM4 |
| Form Factor | Micro ATX |
| Processor Type | AMD |
| Ram Type | DDR4 |
| Special Features | M.2 |
