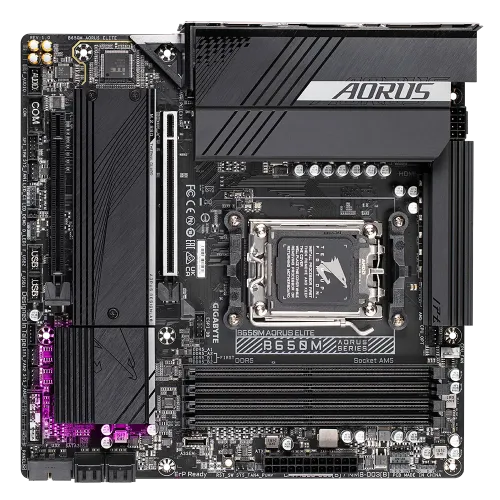

GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard
Original price was: ৳29,700.৳25,400Current price is: ৳25,400.
Quick Overview
- Model: B650M AORUS ELITE
- Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 128GB, 6666(OC)
- Graphics Output: 1x Display Port, 1 x HDMI
- Features: Realtek 2.5GbE LAN
Out of stock
GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1 x DisplayPorts | |

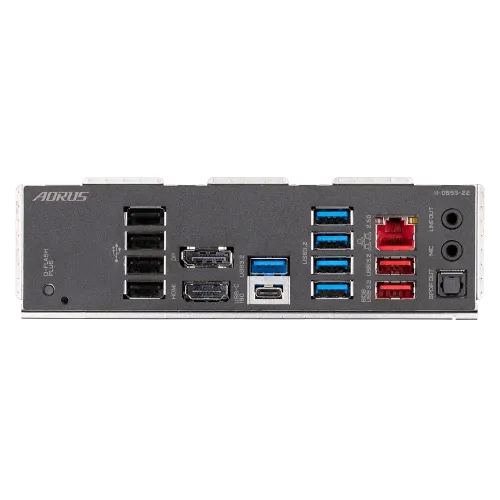

| USB (s) | CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back pane |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 2 x Audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x THB_U4 add-in card connector 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
Description
GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard
The GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard is a high-performance and versatile motherboard designed to support AMD’s latest Ryzen 8000 and 7000 series processors with an AM5 socket and the AMD B650 chipset. This Micro-ATX form factor motherboard measures 24.4 x 24.4 cm and combines powerful performance features with advanced connectivity options, making it ideal for gamers, content creators, and system builders. It is equipped with a licensed AMI UEFI BIOS with a 256 Mbit flash memory, supporting standards such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.
The GIGABYTE B650M AORUS ELITE DDR5 supports DDR5 memory with speeds up to 6666 MHz (OC), 6600 MHz (OC), and other configurations, with a maximum capacity of 128GB. It is optimized for dual-channel memory architecture and supports AMD’s Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) for optimal performance. Graphics are powered by an integrated graphics processor that supports DisplayPort 1.4, delivering resolutions up to 3840×2160 at 144Hz, and HDMI 2.1, with support for resolutions up to 4096×2160 at 60Hz with HDCP 2.3 compatibility.
For storage, the motherboard includes two M.2 connectors with support for PCIe 5.0 x4/x2 and PCIe 4.0 x4/x2 SSDs, as well as four SATA 6Gb/s connectors. RAID 0, 1, and 10 are supported for both NVMe and SATA storage arrays, allowing for flexibility and performance customization. USB connectivity is extensive, with multiple ports, including a USB Type-C® port with USB 3.2 Gen 2 support, two USB 3.2 Gen 2 Type-A ports, and additional USB 3.2 Gen 1 and USB 2.0 ports for seamless peripheral support.
GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard Price in BD
The Best price of a GIGABYTE B650M AORUS ELITE DDR5 AMD AM5 Micro-ATX Motherboard is 25,400 TK. you can visit Our showroom ( Suvastu Arcade ICT Bhaban, Shop: 04,05( Ground Floor), 46-48 New Elephant Road, Dhaka-1205 ) and Join Our Facebook Page.
