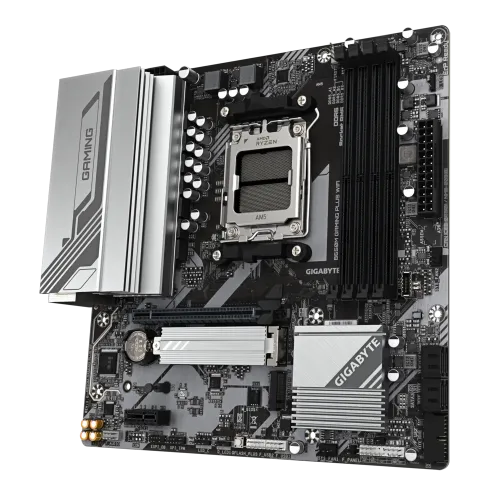

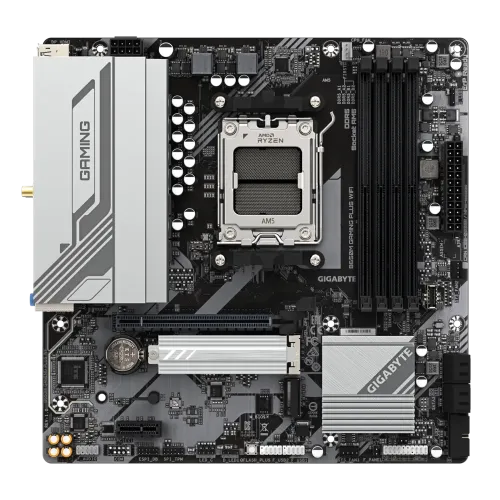

GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard
Original price was: ৳21,700.৳19,500Current price is: ৳19,500.
Quick Overview
- Model: B650M GAMING PLUS WIFI
- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
- Graphics Output: 2x Display Port, 1x HDMI
- Features: Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE
GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard
Specification
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Onboard Graphics Integrated Graphics Processor with AMD Radeon Graphics support – 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version.– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 2 x DisplayPorts | |
| USB (s) | CPU: – 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support – 1 x USB 3.2 Gen 1 port on the back panel – 1 x USB 2.0/1.1 port on the back panelChipset: – 2 x USB 3.2 Gen 1 ports on the back panel – 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header – 2 x USB 3.2 Gen 1 ports available through the internal USB header – 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Wireless Communication module Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless Realtek Wi-Fi 6 RTL 8851BE (PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 80MHz wireless (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumperBack Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 2 x SMA antenna connectors (2T2R) (1T1R)* * Only for Realtek Wi-Fi 6 RTL8851BE 1 x RJ-45 port |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
Description
GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard
The GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard is a feature-packed and performance-oriented motherboard designed for gamers and content creators building their next-generation systems. Built for AMD’s AM5 platform, it supports the latest Ryzen 7000 series processors, offering exceptional processing power and efficiency for gaming, streaming, and multitasking. The motherboard features cutting-edge DDR5 memory support, allowing for faster speeds, greater bandwidth, and improved system responsiveness, making it well-suited for demanding workloads.
With PCIe 5.0 support, the GIGABYTE B650M GAMING PLUS WIFI DDR5 provides faster data transfer speeds for graphics cards, storage devices, and other connected peripherals, ensuring seamless performance and responsiveness. It also offers multiple M.2 slots for NVMe SSDs, providing lightning-fast boot and load times. The inclusion of advanced Wi-Fi 6 and Bluetooth 5.2 connectivity ensures smooth, reliable wireless networking, while the Gigabit Ethernet port allows for stable wired connections with minimal latency.
Designed with a focus on durability and advanced thermal performance, the motherboard incorporates a multi-zone thermal design and integrated heatsinks that maintain optimal system temperatures during extended gaming or productivity sessions. The intuitive UEFI BIOS simplifies system tuning and overclocking for users who want to tweak their system performance. Additionally, the GIGABYTE B650M GAMING PLUS WIFI DDR5 supports RGB Fusion 2.0, allowing users to customize their system’s lighting and create personalized lighting effects with compatible peripherals.
GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard Price in BD
The Best price of a GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard is 19,500 TK. you can visit Our showroom( Suvastu Arcade ICT Bhaban, Shop: 04,05( Ground Floor), 46-48 New Elephant Road, Dhaka-1205 ) and Join Our Facebook Page.
