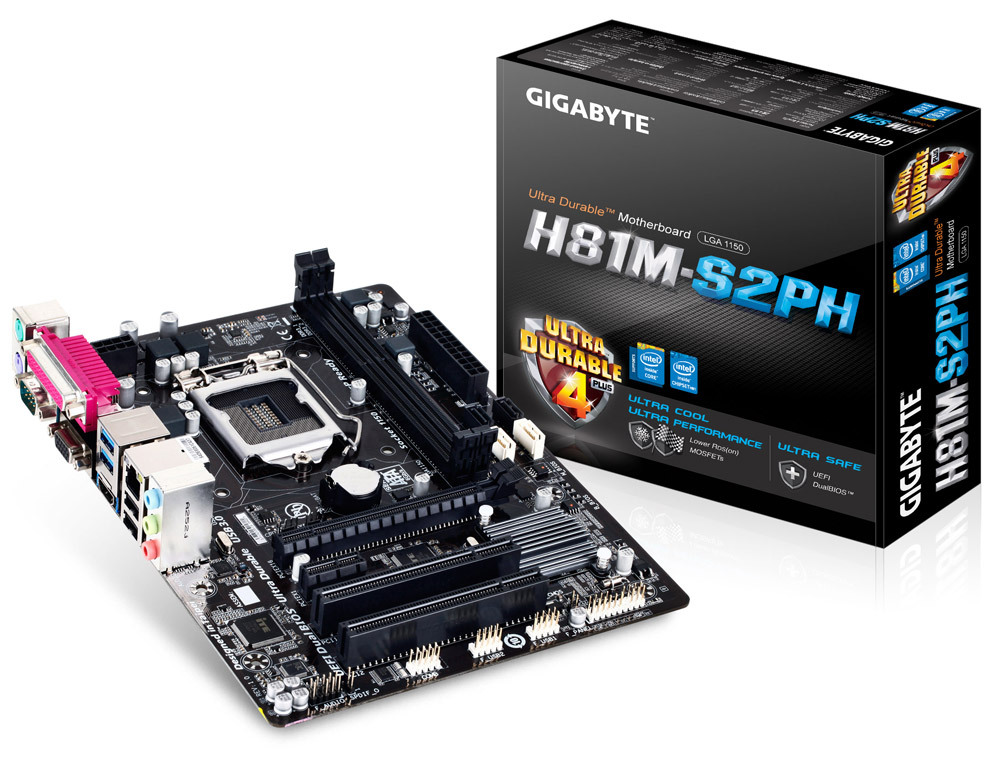

Gigabyte GA-H81M-S2PH Micro ATX Intel Motherboard

Gigabyte GA-H81M-S2PH Micro ATX Intel Motherboard

Original price was: ৳8,500.Current price is: ৳7,700.

Quick Overview

Model: Gigabyte GA-H81M-S2PH
Supports 4th Generation Intel Core processors
GIGABYTE UEFI DualBIOS
All solid capacitors design
LAN with high ESD Protection

Out of stock

অর্ডার করার পূর্বে কাস্টমার কেয়ার ( 01958-487491, 01716-532050 ) থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। " THANK YOU "

Description
Additional information

Specification

Basic Information
Supported CPU	Support For Intel® Core™ I7 Processors/Intel® Core™ I5 Processors/Intel® Core™ I3 Processors/Intel® Pentium® Processors/Intel® Celeron® Processors In The LGA1150 Package L3 Cache Varies With CPU
Chipset	Intel® H81 Express Chipset
Memory	2 X 1.5V DDR3 DIMM Sockets Supporting Up To 16 GB Of System Memory * Due To A Windows 32-Bit Operating System Limitation, When More Than 4 GB Of Physical Memory Is Installed, The Actual Memory Size Displayed Will Be Less Than The Size Of The Physical Memory Installed. Dual Channel Memory Architecture Support For DDR3 1600/1333 MHz Memory Modules Support For Non-ECC Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules
Graphics	1 X D-Sub Port, Supporting A Maximum Resolution Of 1920×1200 1 X HDMI Port, Supporting A Maximum Resolution Of 4096 X 2160 @ 24 Hz / 2560 X 1600 @ 60 Hz * Support For HDMI 1.4a Version. Maximum Shared Memory Of 1 GB
Slots	1 X PCI Express X16 Slot, Running At X16 1 X PCI Express X1 Slot (The PCI Express Slots Conform To PCI Express 2.0 Standard.) 2 X PCI Slots
Supported Storage	2 X SATA 6Gb/S Connectors (SATA3 0/1) Supporting Up To 2 SATA 6Gb/S Devices 2 X SATA 3Gb/S Connectors (SATA2 2/3) Supporting Up To 2 SATA 3Gb/S Devices
LAN	Realtek® GbE LAN Chip (10/100/1000 Mbit)
Audio	Realtek® ALC887 Codec High Definition Audio 2/4/5.1/7.1-Channel * To Configure 7.1-Channel Audio, You Have To Use An HD Front Panel Audio Module And Enable The Multi-Channel Audio Feature Through The Audio Driver. Support For S/PDIF Out
USB Port	Up To 2 USB 3.0/2.0 Ports On The Back Panel Up To 6 USB 2.0/1.1 Ports (2 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers)
Internal I/O Ports	1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 2 X SATA 6Gb/S Connectors 2 X SATA 3Gb/S Connectors 1 X CPU Fan Header 1 X System Fan Header 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 2 X USB 2.0/1.1 Header 1 X Serial Port Header 1 X Clear CMOS Jumper
External I/O Ports	1 X PS/2 Keyboard Port 1 X PS/2 Mouse Port 1 X Parallel Port 1 X Serial Port 1 X D-Sub Port 1 X HDMI Port 2 X USB 3.0/2.0 Ports 2 X USB 2.0/1.1 Ports 1 X RJ-45 Port 3 X Audio Jacks (Line In, Line Out, Mic In)
DIMENSIONS	24.4cm X 18.0cm
Form Factor	Micro ATX
BIOS	2 X 64 Mbit Flash Use Of Licensed AMI EFI BIOS Support For DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Special Features	Support For Q-Flash Support For Xpress Install Support For APP Center * Available Applications In APP Center May Differ By Motherboard Model. Supported Functions Of Each Application May Also Differ Depending On Motherboard Specifications. @BIOS EasyTune EZ Setup USB Blocker Support For ON/OFF Charge
Software Features	Norton® Internet Security (OEM Version)
Others	H/W Monitoring System Voltage Detection CPU/System Temperature Detection CPU/System Fan Speed Detection CPU/System Overheating Warning CPU/System Fan Fail Warning CPU/System Fan Speed Control I/O Controller ITE® I/O Controller Chip
Warranty	3 Years

Description

Gigabyte GA-H81M-S2PH Micro ATX Intel Motherboard

Supports 4^th Generation Intel^® Core™ processors
GIGABYTE Ultra Durable™ 4 Plus Technology
GIGABYTE UEFI DualBIOS™
USB 3.0 ports with GIGABYTE 3x USB power
GIGABYTE On/Off Charge™ for USB devices
LAN with high ESD Protection
HDMI, D-SUB, LPT, COM port on rear panel
All solid capacitors design

GIGABYTE 8 Series Motherboards

GIGABYTE 8 Series motherboards support the latest 4^th Generation Intel^® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.

Gigabyte GA-H81M-S2PH Micro ATX Intel Motherboard

Next Gen Intel^® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performan

Brand	Gigabyte
Color	Black
CPU Sockets	LGA1150
Form Factor	Micro ATX
Processor Type	Intel
Ram Type	DDR3
