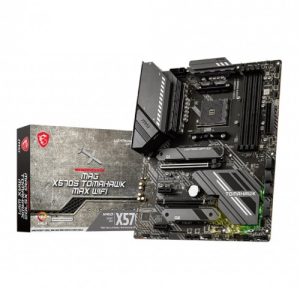

MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard
Original price was: ৳30,500.৳28,200Current price is: ৳28,200.
Quick Overview
- Brand: MSI
- Model: MAG X570S TOMAHAWK MAX WIFI
- Supports Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G, 2000 & 2000 G-Series processors
- Supports DDR4 Memory, up to 5100(OC) MHz
- 2.5G LAN and Intel Wi-Fi 6E Solution
- Supports 2-Way AMD Crossfire
Out of stock
Specification
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors Supports Socket AM4 |
| Chipset | AMD X570 Chipset |
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Audio | Realtek ALC4080 Codec 7.1-Channel High-Definition Audio Supports S/PDIF output |
| PCI | Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| Type | DDR4 |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | Up to 128GB |
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology |
| HDMI | 1 x HDMI 2.1 |
| USB (s) | AMD X570 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| LAN Port (s) | 1x Realtek 8125B 2.5Gbps LAN Controller |
| Wireless Communication module | Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| Supported Storage | 6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Manufacturing Warranty | 3 Years |
Description
MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard
Take Your Gaming Experience To The Next Level By Including The MSI Mag X570SS Tomahawk WIFI AM4 ATX Motherboard In Your High-Performance Computer Build. Designed For Gamers, Enthusiasts, And Content Creators, This Motherboard Is Powered By The AMD X570SS Chipset And Supports 2nd And 3rd Generation AMD Ryzen Processors With The AM4 Socket. It Takes Full Advantage Of The Large PCIe 4.0 Data Bandwidth To Deliver High Performance For Tasks Such as 3D Rendering, Video Editing, And More. Up To 128GB Of Dual-Channel DDR4 RAM, Reaching 4600 MHz When Overclocked, Can Be Installed Across Four Memory Slots. The ATX Motherboard Also Features Advanced Cooling And Supports Up To Three M.2 SSDs And Six SATA III Storage Drives, Which Can Be Put Into RAID 0, 1, Or 10 Configuration. Its Two PCIe 4.0 X16 Slots Can Accommodate The 2-Way AMD CrossFireX Configuration To Maximize Your System’s Graphical Capabilities For High Frame Rates, Connecting 4K Monitors, And Faster Video Rendering Times. Alternatively, The Built-In HDMI Port Allows You To Take Advantage Of Integrated CPU Graphics. Two Additional PCIe 3.0 X1 Slots Are Available For Compatible Expansion Cards.
Connect Compatible Peripherals To The USB 3.2 Gen 2 Type-A And Type-C Ports To Transfer Data At Up To 10 Gb/S. Play Online Games And Stream Video Using The Fast 2.5 Gigabit Ethernet Port Or The Built-In 802.11ax Wi-Fi, Which Can Reach Wireless Data Speeds Of Up To 2.4 Gb/S With Compatible Devices. The X570S Tomahawk WIFI Also Delivers Deep And Immersive 5.1-Channel Surround Sound Through The Realtek ALC1200 Audio Codec. You Can Customize Your Computing Experience Using The RGB Headers To Connect Light Strips, Which Can Be Synced With MSI Mystic Light-Compatible Peripherals Such As Mice And Keyboards. MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard has 03 years warranty.
MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard Price in BD
The Best price for MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard is 28,200 taka only. You can buy MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard and also you can visit Our showroom and Join Our Facebook Page.
| Brand | |
|---|---|
| Color | |
| CPU Sockets | AM4 |
| Form Factor | ATX |
| Processor Type | AMD |
| Ram Type | DDR4 |
| Special Features | CrossFireX, M.2, Wi-Fi |
