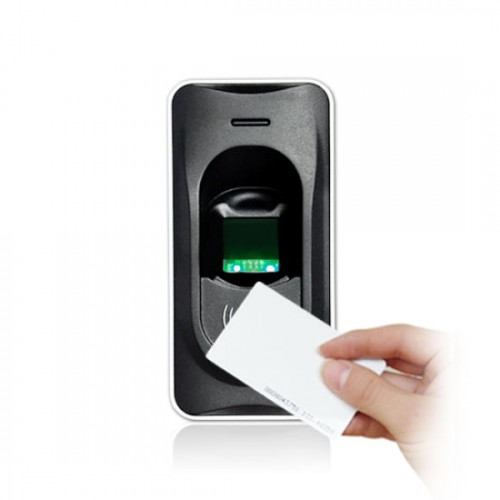

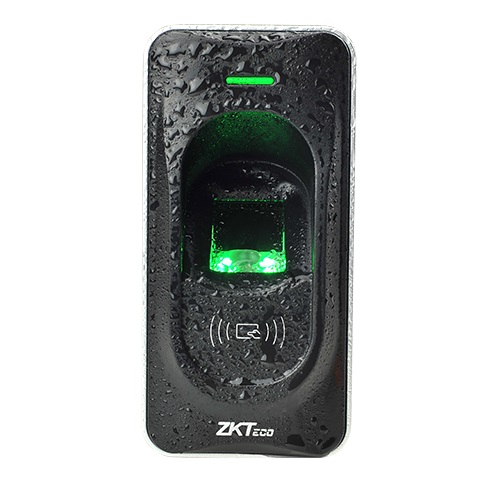

ZKTeco FR1200 Finger & RFID Exit Reader

The ZKTeco FR1200 is a Finger & RFID Exit Reader designed for use in access control systems. It combines both biometric fingerprint recognition and RFID card reading technology in a single unit, providing a versatile solution for securing exit points, gates, or doors in a variety of environments, such as office buildings, industrial facilities, and residential complexes.

Key Features:

1. Dual Authentication Technology:
   • Fingerprint Recognition: Uses ZKTeco’s advanced fingerprint recognition technology for biometric identification, ensuring high security and accuracy.
   • RFID Card Reader: The device supports 13.56 MHz RFID cards (like MIFARE cards), allowing for flexible access control using either fingerprints or RFID cards.
2. Exit Control Functionality:
   • Designed specifically for exit doors or gates, the FR1200 ensures that users can authenticate their identity when exiting a building or secured area. This helps to monitor and control the flow of people, preventing unauthorized exits.
3. Standalone or Integrated Use:
   • The FR1200 can function as a standalone reader or as part of a larger networked access control system. When integrated, it can communicate with a central control panel for more advanced features like logging access attempts, setting up time-based access policies, and monitoring events.
4. Fast and Accurate Authentication:
   • With a quick fingerprint capture time, the FR1200 offers reliable authentication in less than a second, improving user experience and reducing wait times.
   • The fingerprint template is stored locally, enhancing the speed of operation and reducing dependency on central databases for authentication.
5. Compact and Durable Design:
   • The FR1200 has a sleek, space-saving design suitable for various installation environments.
   • Built with IP65-rated housing, it is designed to withstand dust, water, and harsh environmental conditions, making it suitable for both indoor and outdoor installations.
6. Multi-Communication Options:

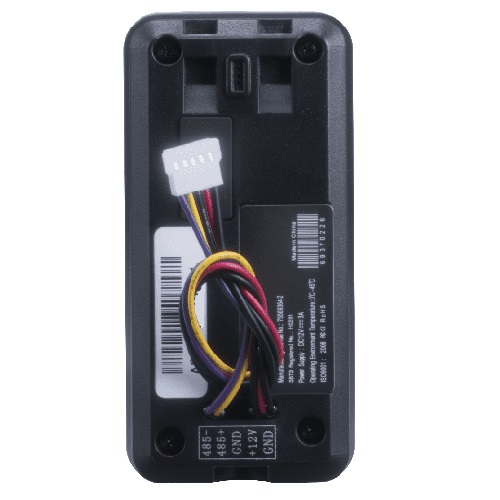

   • The device supports Wiegand and RS485 communication protocols, making it compatible with a wide range of access control panels and security systems.
   • It is powered via 12V DC, with typical power requirements that are easy to integrate into most access control setups.
7. User-Friendly Operation:
   • The FR1200 typically features LED indicators for status, and an optional buzzer or alarm to provide audible feedback to users during authentication.

Specifications:

• Fingerprint Sensor: Optical or Capacitive sensor (depending on the model)
• Fingerprint Capacity: Usually stores up to 1,000 fingerprint templates, depending on configuration
• RFID Card Type: 13.56 MHz MIFARE or compatible RFID cards
• Fingerprint Scan Time: Less than 1 second
• Verification Modes: Fingerprint, RFID Card, or a combination of both (depending on configuration)
• Operating Voltage: 12V DC
• Communication Interface: Wiegand, RS485
• Housing: IP65-rated (weatherproof)
• LED Indicators: Green and red LEDs for status feedback
• Buzzer: Audible sound feedback for successful or failed authentication
• Mounting: Designed for easy wall or surface mounting

Applications:

• Exit Access Control: Ideal for managing access at exit doors, gates, or elevators, where both fingerprint and RFID card authentication may be required.
• Workplace Security: Can be used to track employee exits and ensure only authorized individuals are permitted to leave a secured area.
• Visitor Management: Suitable for visitor access, allowing both temporary RFID cards and permanent biometric credentials for entry and exit.
• Integrated Access Control Systems: It integrates well with larger access control systems, helping to ensure secure exit tracking, logging, and real-time monitoring.

Advantages:

• Flexibility: Users can authenticate using fingerprints, RFID cards, or both, providing versatile security options.
• High Security: Biometric authentication ensures that only authorized individuals can access or exit the area.
• Reliability: Built to withstand a wide range of environmental conditions, the FR1200 is ideal for high-traffic and outdoor installations.
• Ease of Integration: Compatible with a wide range of access control systems, making it easy to add to existing security infrastructures.

The ZKTeco FR1200 is an excellent choice for businesses or facilities looking for a reliable and flexible access control solution that incorporates both biometric and RFID technology for secure exit management.
