ASRock B560M Pro4 10th and 11th Gen Micro ATX Motherboard
Original price was: ৳12,000.৳11,500Current price is: ৳11,500.
Quick Overview
- Model: B560M Pro4
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
- Supports DDR4 4800MHz (OC)
- Graphics Output: HDMI, DisplayPort
- Form Factor: Micro ATX
Out of stock
ASRock B560M Pro4 10th and 11th Gen Micro ATX Motherboard
Specification
| Basic Information | ||
| Supported CPU | – Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) – Digi Power design – 8 Power Phase design – Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | – Intel B560 | |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCSA,VCCIO Multi-adjustment |
|
| Form Factor | – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm – Solid Capacitor design |
|
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection – Nahimic Audio |
|
| Expansion Slots | ||
| PCI | 11th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)) 10th Gen Intel Core Processors – 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))– 1 x PCI Express 3.0 x1 Slot – Supports AMD Quad CrossFireX and CrossFireX |
|
| M.2 Socket | – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DDR4 DIMM Slots | |
| Supported Memory | – 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) – 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC) – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | – Max. the capacity of system memory: 128GB | |
| Graphics | ||
| Graphics | – 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics – Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 – Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc – Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports – Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| Display Port (s) | 1 x DisplayPort 1.4 | |
| USB (s) | Connector: – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)Rear Panel I/O: – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) |
|
| LAN Port (s) | – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Supported Storage | – 6 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
|
| Audio | Connector: – 1 x Front Panel Audio Connector Rear Panel I/O: – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Internal I/O Ports | Connector: – 1 x Chassis Intrusion and Speaker Header – 2 x RGB LED Headers – 2 x Addressable LED Headers – 1 x CPU Fan Connector (4-pin) – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) – 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)Rear Panel I/O: – 3 x Antenna Mounting Points – 1 x PS/2 Mouse/Keyboard Port – 1 x HDMI Port – 1 x DisplayPort 1.4 – 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| TPM (Trusted Platform Module ) | – 1 x SPI TPM Header | |
| Others | ||
| Bundled Software | – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock XFast LAN |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
Description
ASRock B560M Pro4 10th and 11th Gen Micro ATX Motherboard
king and powerful Motherboard

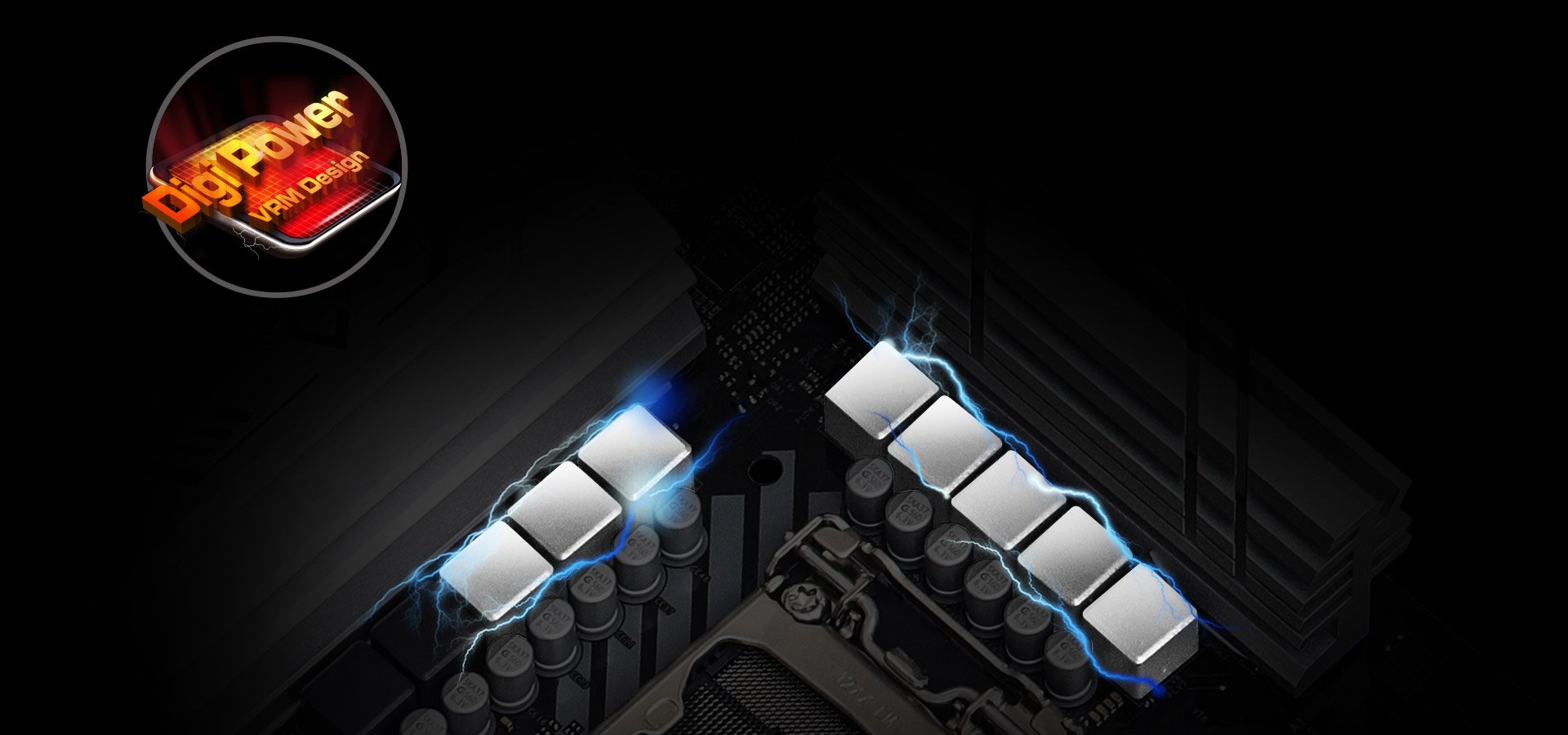

8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Clever Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

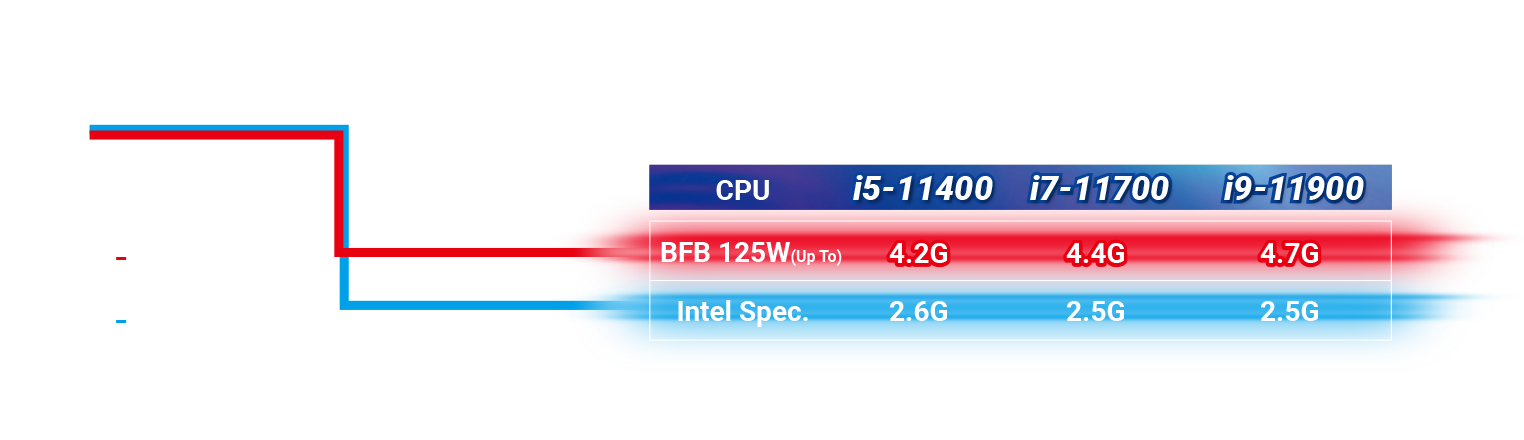

Base Frequency Boost (BFB) Technology
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.

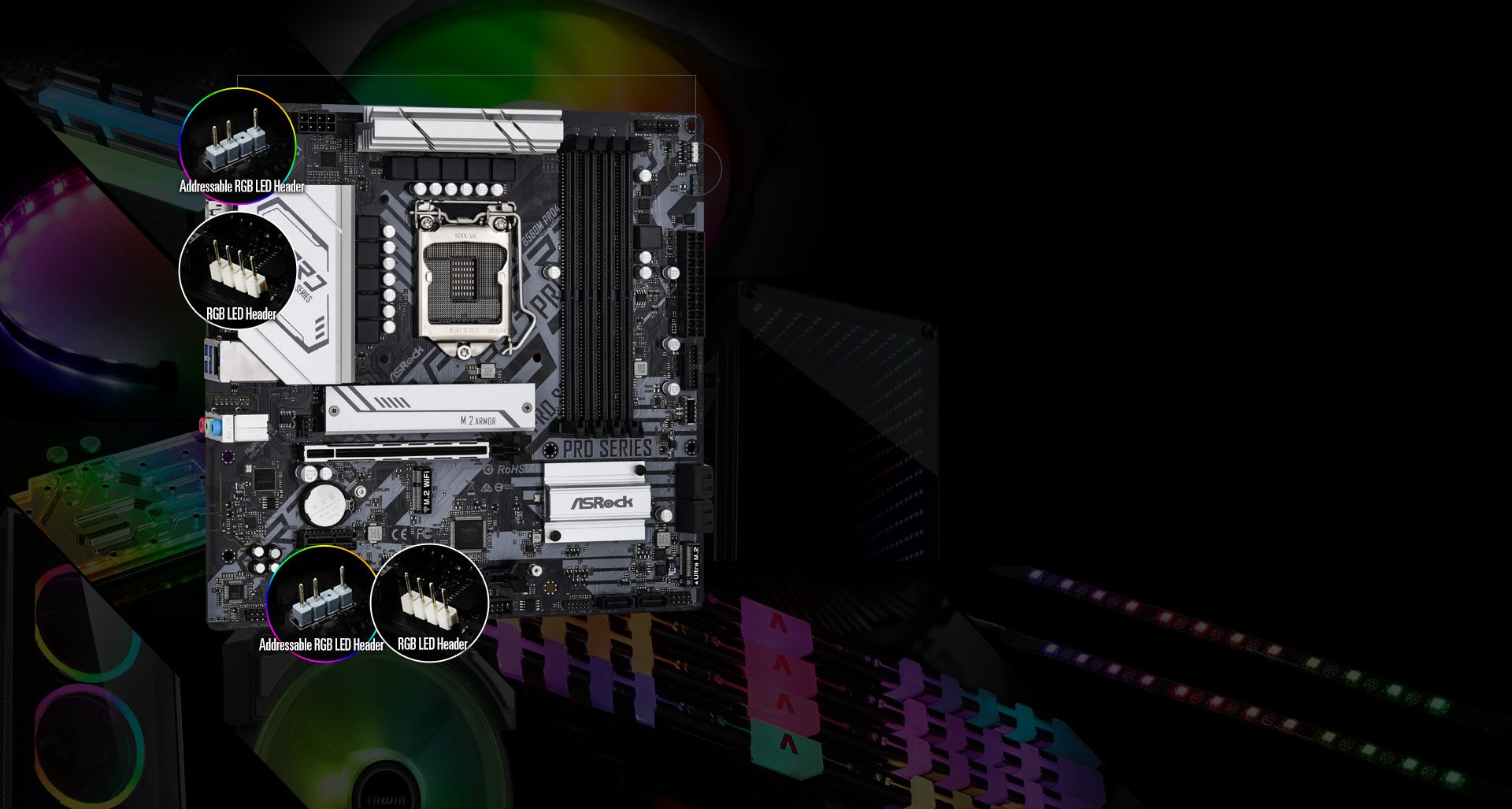

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

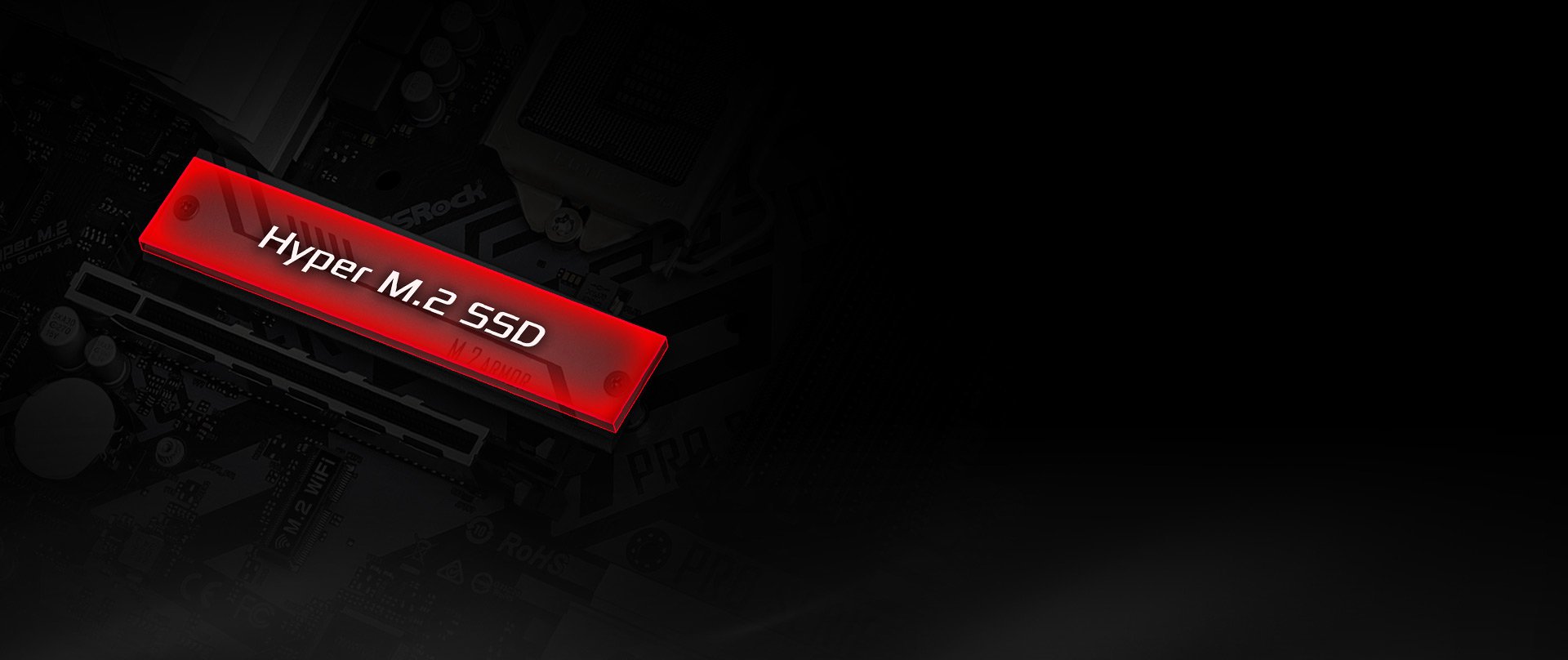

PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

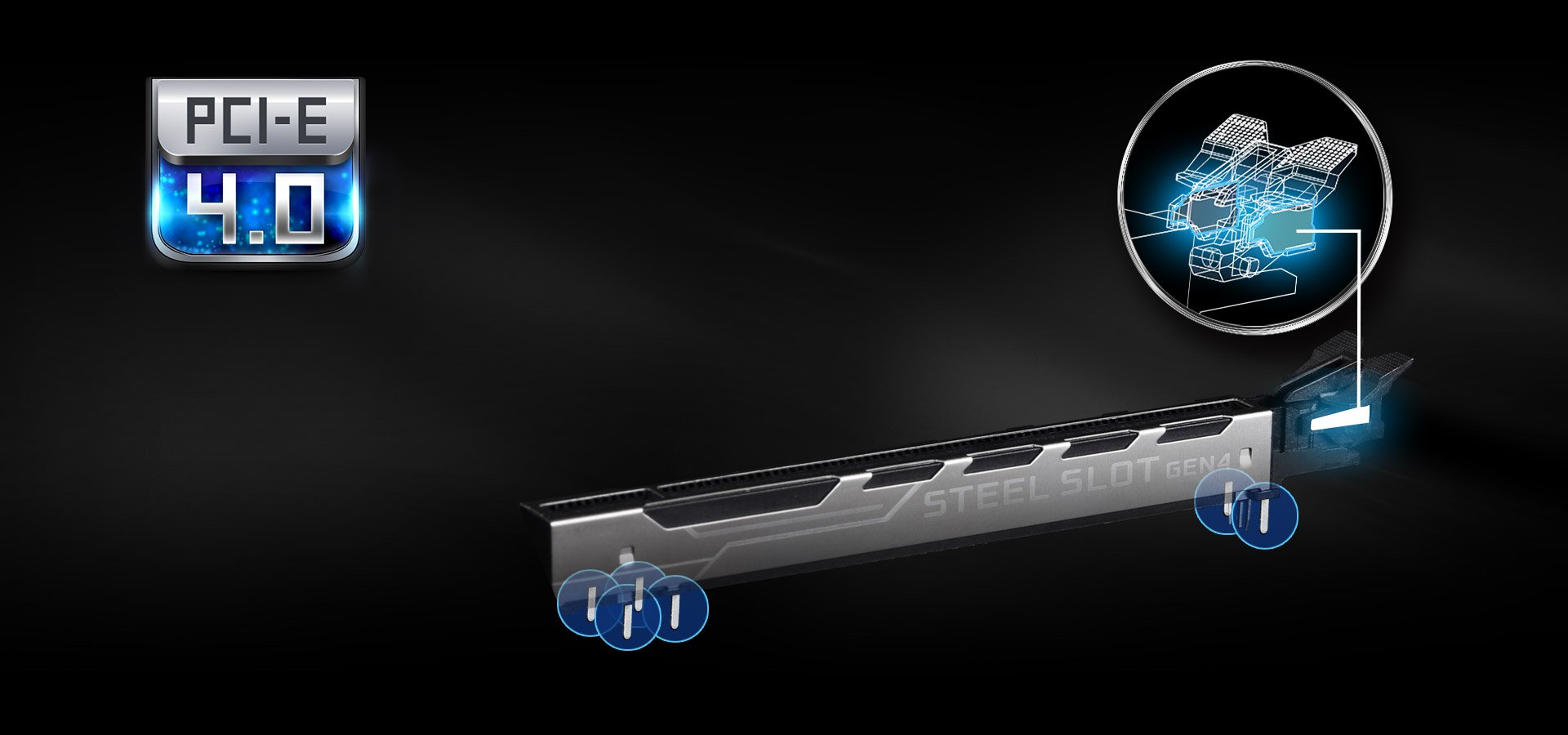

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
![Reinforced Steel Slot [PCIe 4.0 Version]](https://i0.wp.com/www.asrock.com/mb/features/PCIeSteel-B560M%20Pro4.jpg?w=1020&ssl=1)
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

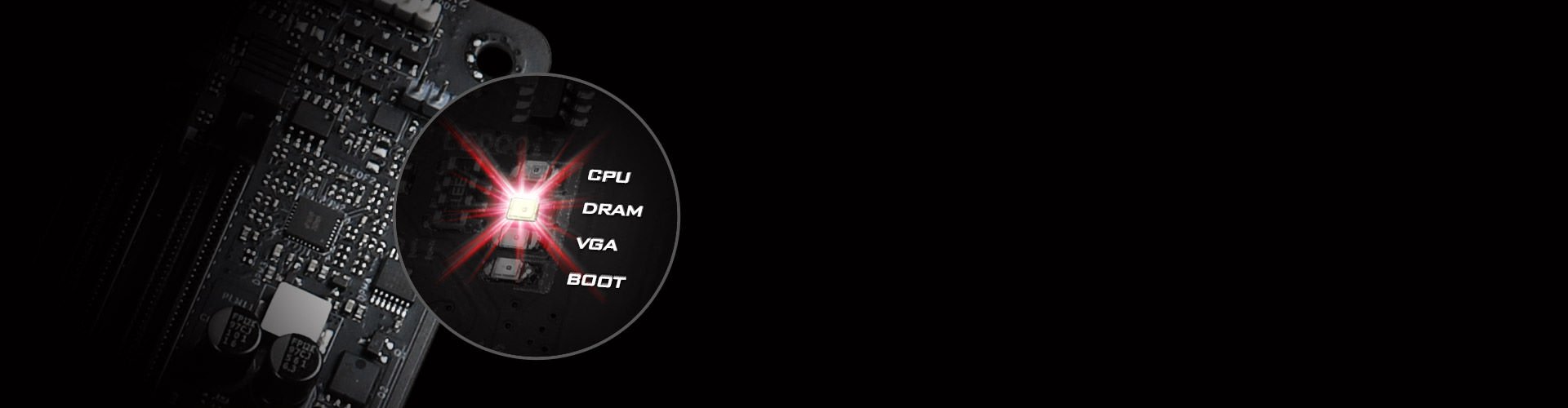

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ASRock B560M Pro4 10th and 11th Gen Micro ATX Motherboard Price in BD
The Best price of ASRock B560M Pro4 10th and 11th Gen Micro ATX Motherboard is 11800 taka. You can buy the ASRock B560M Pro4 10th and 11th Gen Micro ATX Motherboard in BD and also you can visit Our showroom and Join Our Facebook Page.
| Brand | |
|---|---|
| Color | |
| CPU Sockets | LGA1200 |
| Form Factor | Micro ATX |
| Processor Type | Intel |
| Ram Type | DDR4 |
| Special Features | M.2 |
