ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
Original price was: ৳31,000.৳19,000Current price is: ৳19,000.
Quick Overview
- Model: ASRock X299 Taichi
- Chipsets: Intel X299, 1 x TPM Header
- Supports Intel Core X-Series Processor Family
- Supports DDR4 4400+(OC)
- 4 PCIe 3.0 x16, 1 PCIe 2.0 x1
Out of stock
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard
Specifications
| Motherboard | ||
| Chipset | Intel X299 | |
| Slots | 4 x PCI Express 3.0 x16 Slots – 1 x PCI Express 2.0 x1 Slot – Supports AMD Quad CrossFireX, 3-Way CrossFire and CrossFireX – Supports NVIDIA Quad SLI, 3-Way SLI and SLI – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) – 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)*If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x0 or x8/x8/x16/x8. If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x8/x0 or x8/x0/x8/x8. If you install CPU with 16 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x0/x0/x0 or x8/x0/x4/x0. Supports NVMe SSD as boot disks**3-Way CrossFireX is only supported with CPU with 44 lanes or 28 lanes. ***This feature is only supported with CPU with 44 lanes or 28 lanes. |
|
| Wireless LAN | Intel® 802.11ac WiFi Module (Free Bundle) – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High speed class II |
|
| Supported Processors | Supports Intel Core X-Series Processor Family for the LGA 2066 Socket – Digi Power design – 13 Power Phase design – Supports Intel Turbo Boost Max Technology 3.0 – Supports ASRock Hyper BCLK Engine III |
|
| Max Memory | Quad Channel DDR4 Memory Technology – 8 x DDR4 DIMM Slots – Supports DDR4 4400+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports non-ECC RDIMM (Registered DIMM) – Max. capacity of system memory: 128GB – Supports Intel Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM SlotsThe maximum memory frequency supported may vary by processor type.Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. Please refer to Memory Support List on ASRock’s website for more information. |
|
| BIOS | – 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) – Supports Secure Backup UEFI Technology – ACPI 6.1 Compliant wake up events – SMBIOS 3.0 Support – CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment |
|
| Onboard Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Supports Purity Sound 4 – Nichicon Fine Gold Series Audio Caps – 120dB SNR DAC with Differential Amplifier – TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) – Pure Power-In – Direct Drive Technology – PCB Isolate Shielding – Impedance Sensing on Front Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15μ Gold Audio Connector – Supports DTS Connect |
|
| Onboard LAN | Gigabit LAN 10/100/1000 Mb/s – 1 x Giga PHY Intel I219V, 1 x GigaLAN Intel I211AT – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Dual LAN with Teaming – Supports Energy Efficient Ethernet 802.3az – Supports PXETeaming is supported on Windows 10 RS2 and above. |
|
| Warranty | 03 Years | |
ASRock X299 Taichi USB 3.1 ATX Intel Motherboard

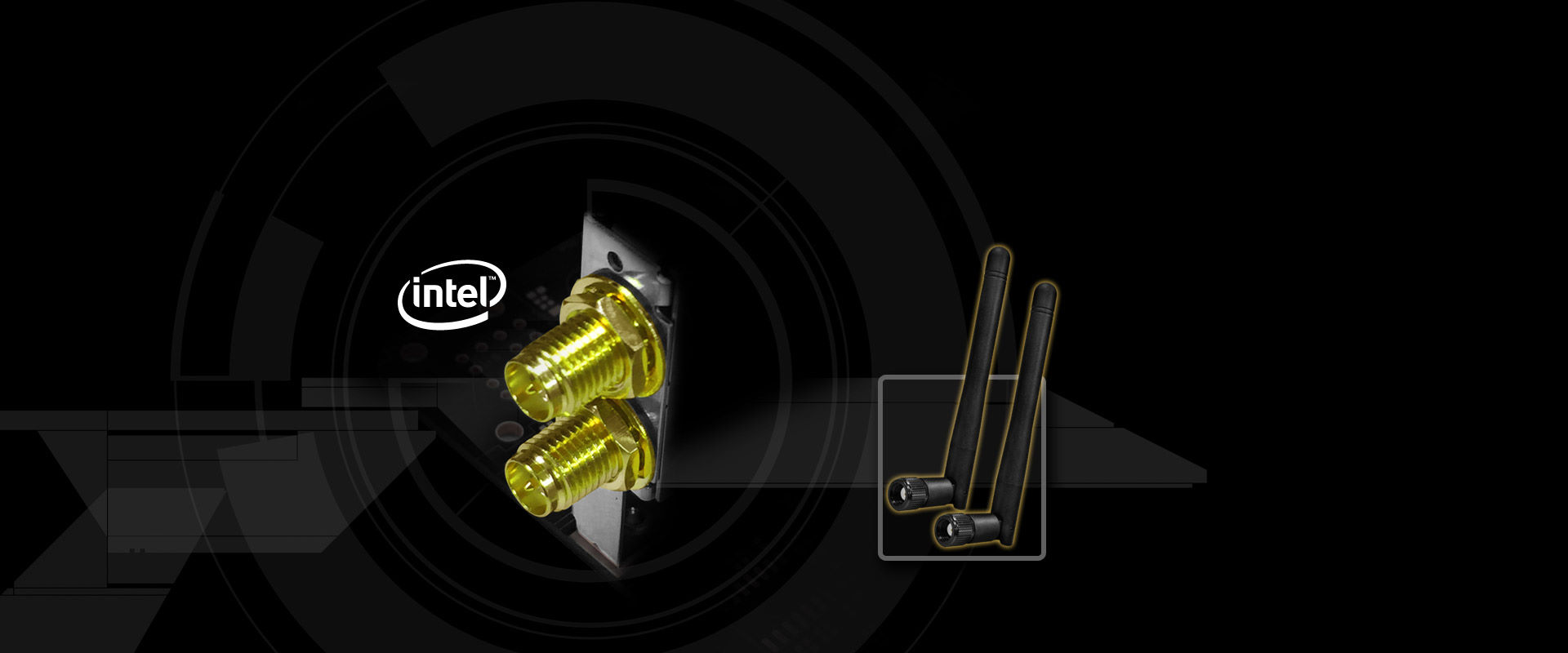

Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That’s why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Triple Ultra M.2
Triple of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
*Performance result may vary with a different configuration.

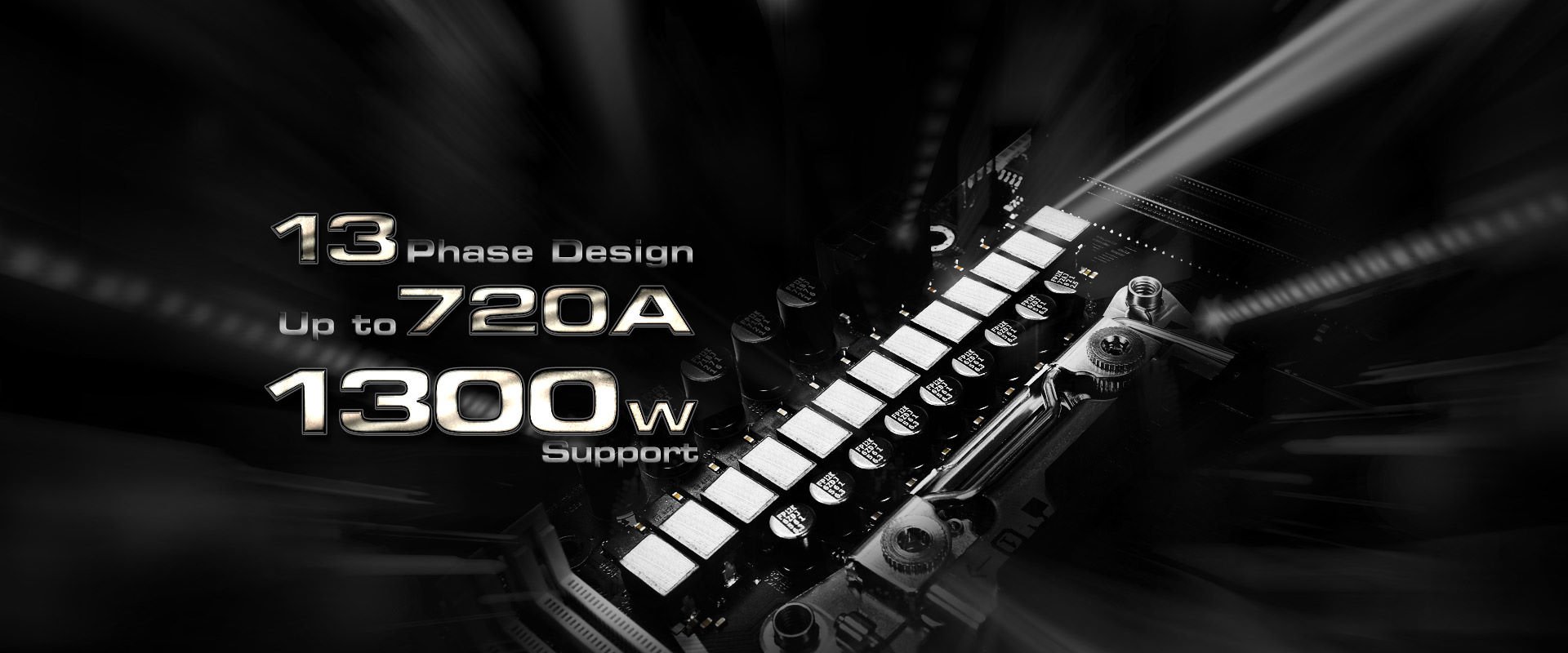

13 Power Phase Design
Designed with a 13 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

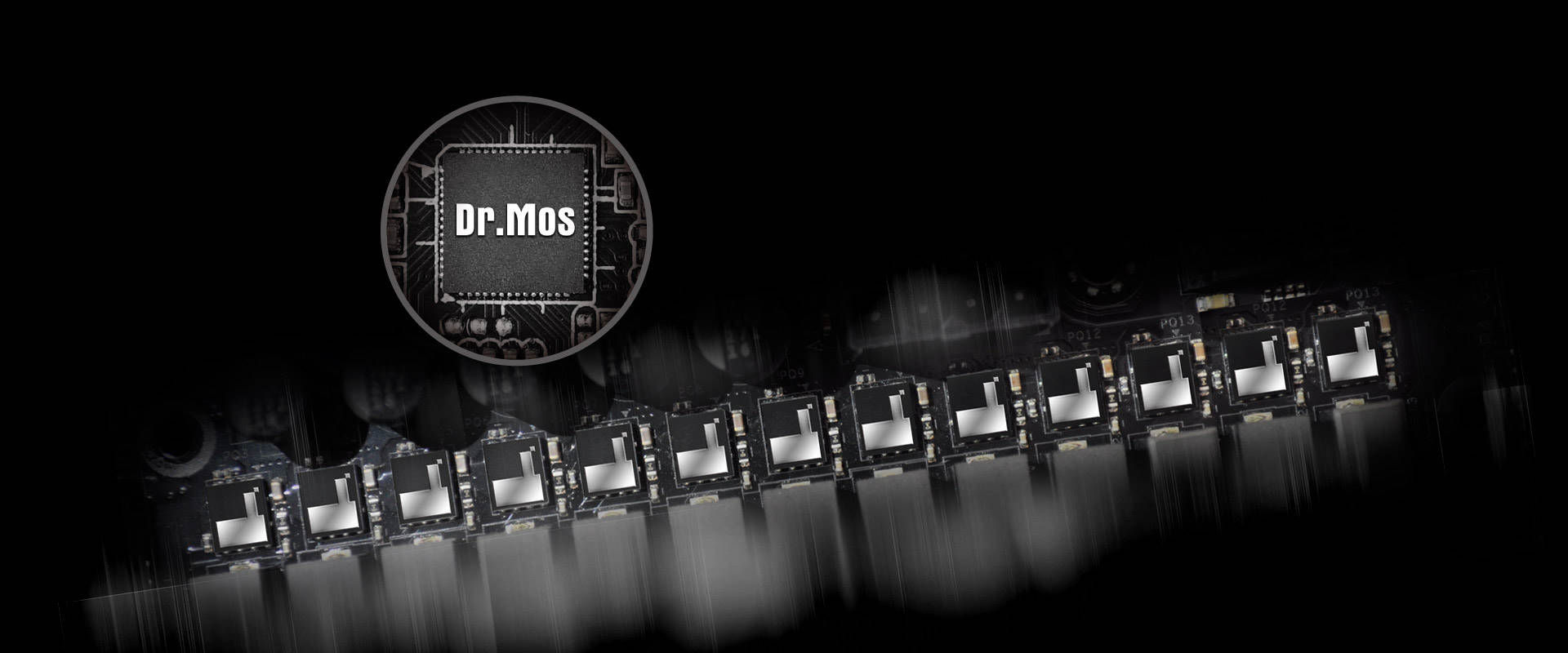

Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
See more details.
See more details.
8 Layer PCB (4 x 2oz Copper) & DDR4 4400+(OC)
The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it’s able to support the latest DDR4 memory modules with most extreme memory performance!
Dual Intel® LAN
Users are able to connect two LAN cables to this motherboard’s rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act as one single connection for twice the transmission bandwidth, making data transmission more effective.
* Teaming is supported on Windows® 10 RS2, RS3 and RS4.
Dual USB 3.1 Gen2 (Type-A + Type-C)
The newer and more power efficient ASM3142 USB 3.1 Gen2 controller not only delivers up to 10 Gbps data transfer rates but also supports “Multiple Ins” architecture, it is able to maintain fast and stable speed while transferring data from two USB storage devices at the same time without bogging down by their speed difference.

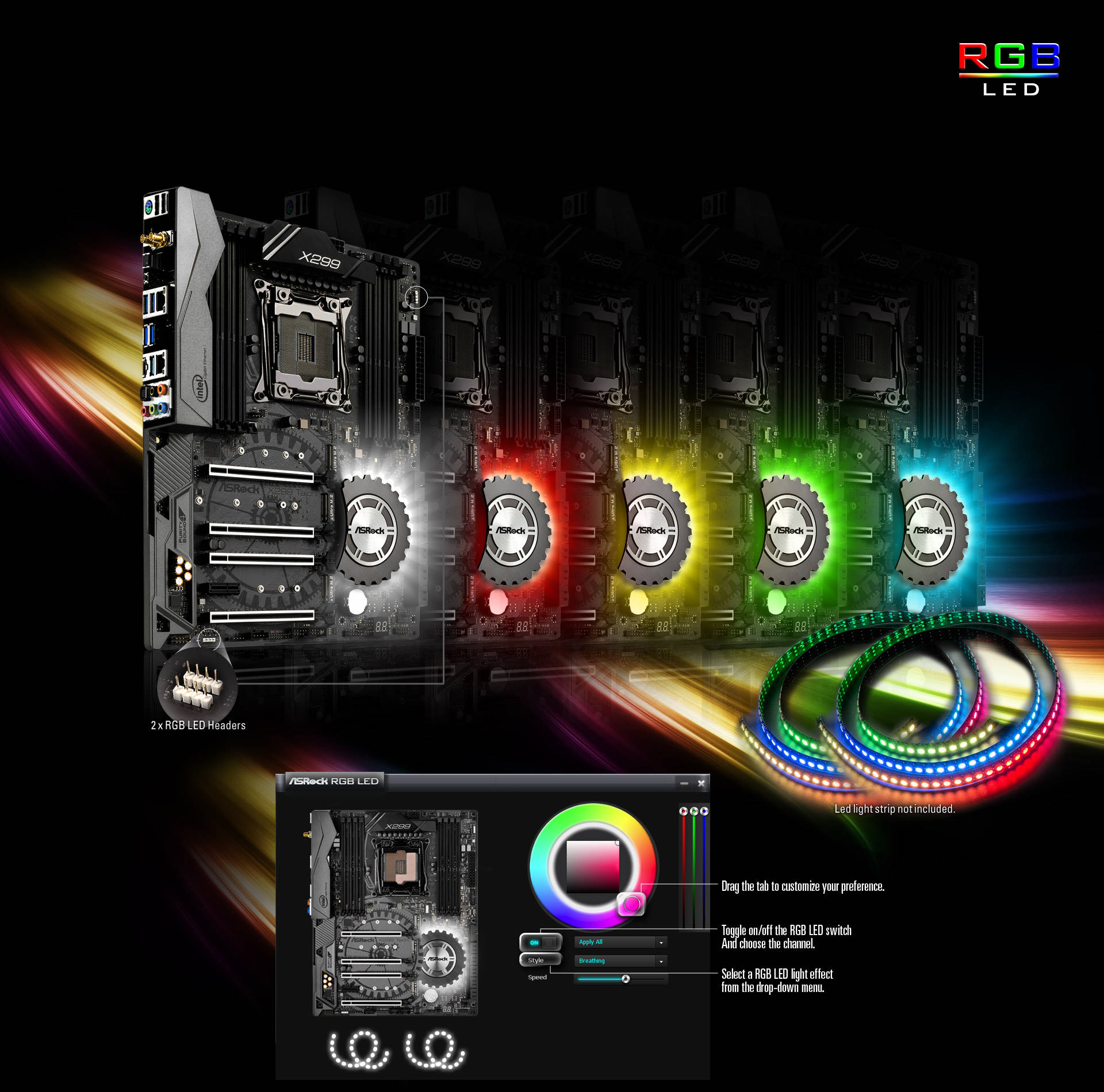

RGB LED
Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily. The ASRock RGB LED utility can be downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!

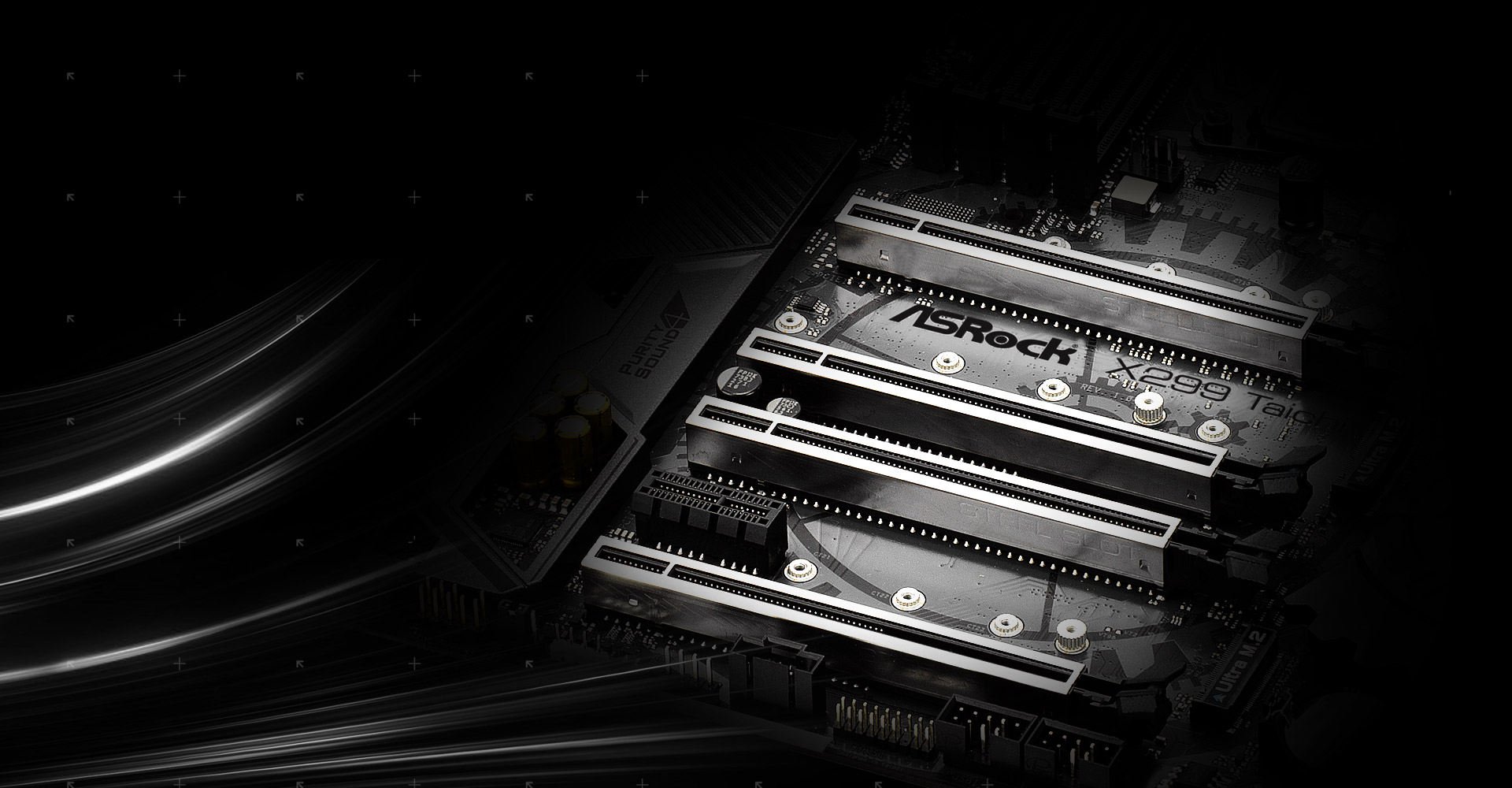

PCI-E STEEL SLOT
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.
| Brand | |
|---|---|
| Color | |
| CPU Sockets | LGA 2066 |
| Form Factor | ATX |
| Processor Type | Intel |
| Ram Type | DDR4 |
| Special Features | CrossFireX |
